| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Gender | |
| Hex Nut Material | |
| Insulation | |
| Insulator Material | |
| Lead Style | |
| Lockwasher Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Panel Thickness Range | |
| Plug | |
| Plug Type | |
| Termination | |
| Termination Style | |
| Type |

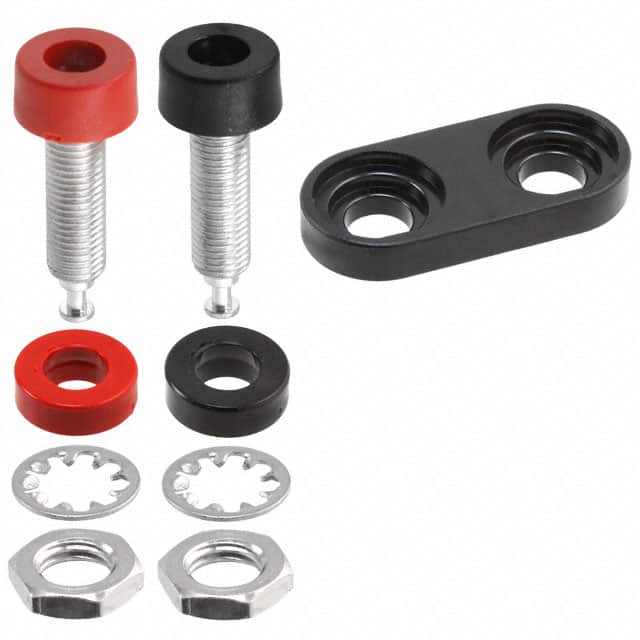

The Pomona Electronics 2269-0 is an insulated double banana jack designed for panel mounting. It features a female gender and accepts standard banana plugs. The connector is terminated via two turret-style solder terminals, providing reliable electrical connections.
Electrical ratings include an operating voltage of 2500 Vrms for hands-free use in controlled environments and a current rating of 15 Amperes. The operating temperature range reaches a maximum of 115°C (239°F).
Mechanically, the 2269-0 mounts in panels with a thickness range of 1.60 mm to 9.53 mm. Construction materials include a bright tin plated brass banana jack and solder turrets, polycarbonate mounting base and insulator, nickel plated steel lockwasher, and a 3/8" ¼-32 nickel plated brass hex nut. The base color for this model is black.
The 2269-0 is rated for 2500 Vrms maximum for hands-free usage in controlled voltage environments. For CE compliance, it is not intended for hand-held use at voltages above 33 Vrms/70 Vdc.
The current rating is 15 Amperes.
The 2269-0 is a panel mount connector.
