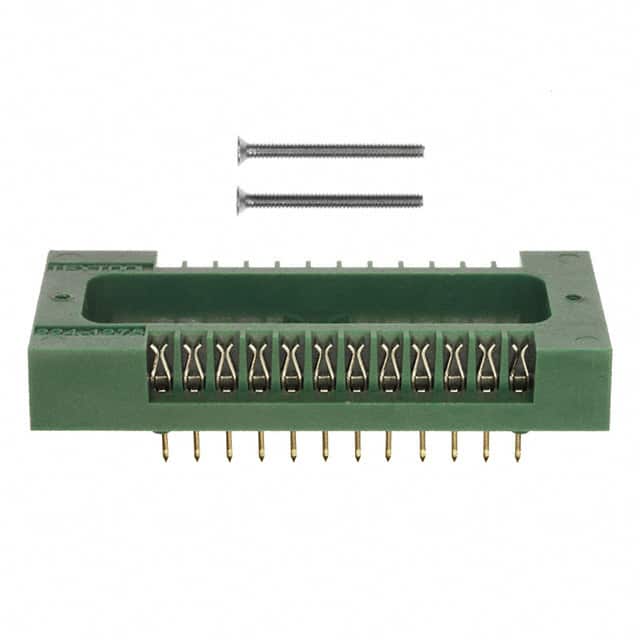

The 224-1275-29-0602J is a 24-position DIP socket receptacle from 3M Electronic Solutions, part of the Textool family. It is designed to mate with ZIP DIP sockets, including universal and shrink DIP variants, providing a reliable interconnect solution for prototyping and testing applications.
Key specifications include a pitch of 2.54 mm (0.100 inches) and a row spacing of 15.24 mm (0.6 inches). The receptacle features through-hole mounting with solder termination, ensuring secure attachment to printed circuit boards. Contacts are made of beryllium copper with a 30 µ" gold over 50 µ" nickel plating, offering excellent conductivity and corrosion resistance.
The housing is constructed from glass-filled polysulfone (PSU) with a UL94V-0 flammability rating, providing durability and safety. Electrically, the receptacle is rated for 1 A continuous current, with an insulation resistance greater than 1 GΩ at 500 Vdc and a withstanding voltage of 1000 Vrms at sea level. The operating temperature range spans -55°C to +125°C, making it suitable for a wide range of environments.
This receptacle is commonly used in socket adapter assemblies for IC testing, burn-in, and development boards. Its robust design and gold-plated contacts ensure long-term reliability in repeated insertion and extraction cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.29 | $29.29 |
| 10+ | $24.89 | $24.89 |
| 20+ | $23.03 | $23.03 |
| 50+ | $21.74 | $21.74 |
| 100+ | $21.15 | $21.15 |
| 200+ | $19.83 | $19.83 |
| 500+ | $18.99 | $18.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions.
2.54 mm (0.100 inches).
1 A.
1000 Vrms at sea level.
Through hole with solder termination.
-55°C to +125°C.
30 µ" gold over 50 µ" nickel on beryllium copper contacts.
