| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,733 pcs
|
5733 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Mounting Type | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

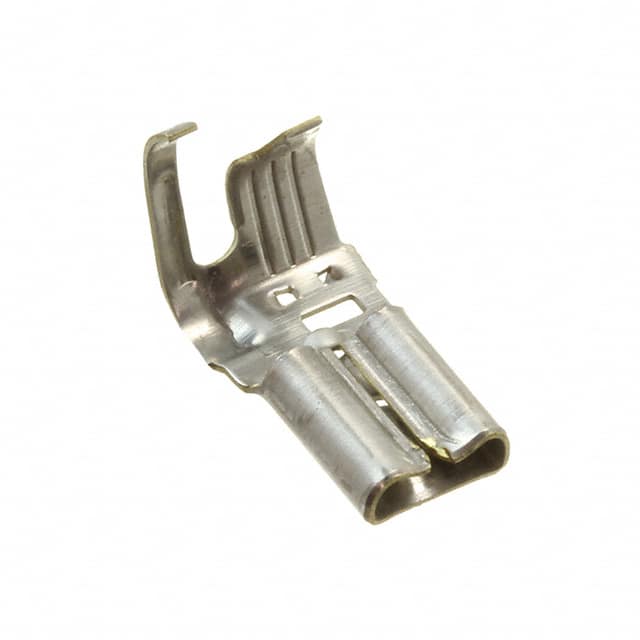

The TE Connectivity 2238200-3 is a FASTON 187 series flag quick disconnect terminal designed for reliable wire-to-tab connections. It features a 0.187" (4.75mm) tab width, 0.032" (0.81mm) thickness, and 0.250" (6.35mm) length. This female terminal accepts 16-20 AWG wire and uses a crimp termination method. The angled 90° flag design allows for right-angle mounting in free-hanging (in-line) applications. The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. It is non-insulated, suitable for applications where insulation is not required. This terminal is part of TE's FASTON standard line, known for reduced insertion force and backward compatibility with existing FASTON housings.
0.187" (4.75mm)
16-20 AWG
No, it is non-insulated.
Free hanging (in-line) with right angle orientation.
Brass contact with tin finish.
Angled 90° flag receptacle.
Female.
