| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
105,000 pcs
|
105000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,009 pcs
|
8009 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Crimp Style | |
| Gender | |
| Insulation | |
| Lead Style | |
| Mating Tab Size | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

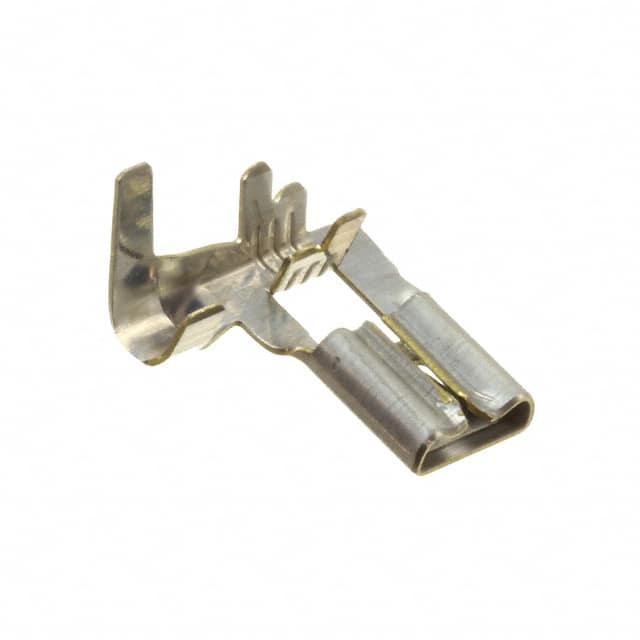

The TE Connectivity 2238172-3 is a .187in female flag quick disconnect terminal from the FASTON Standard line. It is designed for free hanging, right angle mounting with crimp termination. The terminal accepts wire gauges from 14 to 24 AWG and features a tin-plated brass contact for reliable conductivity.
The terminal has a tab width of 0.187 inches (4.75mm) and a tab thickness of 0.032 inches (0.81mm). It is a non-insulated, angled 90° flag receptacle with an F crimp style. The contact material is brass with a tin finish.
This component is suitable for applications requiring a secure, quick-disconnect connection in a space-constrained orientation. The flag design allows for right-angle mating, which is useful in tight layouts. The crimp termination provides a gas-tight connection for consistent electrical performance.
Free hanging (in-line) and right angle mounting.
0.187 inches (4.75mm).
14-24 AWG.
Brass with tin finish.
No, it is non-insulated.
Angled 90° flag receptacle.
F crimp.
