| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Large Diameter Recovered | |
| Large Diameter Supplied | |
| Large Recovered Length | |
| Material | |
| Shell Size | |
| Small Diameter Recovered | |
| Small Diameter Supplied | |
| Small Recovered Length | |
| Total Length Recovered | |
| Type |

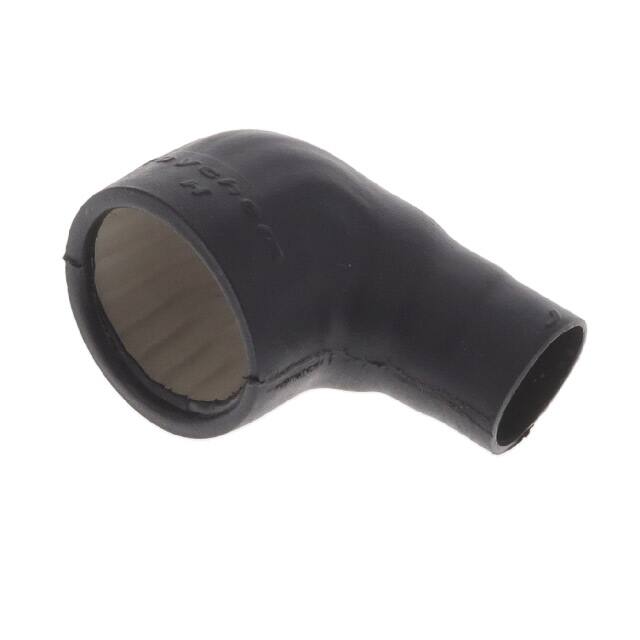

The 222S121-25C-0 is a 90° right angle heat shrink boot manufactured by TE Connectivity. It is designed for shell size 21 and features a black elastomer/silver composite material. The boot is supplied with a large diameter of 20.07mm and a small diameter of 10.92mm. After recovery, the large diameter shrinks to 10.41mm and the small diameter to 5.08mm. The recovered lengths are 24.89mm for the large end and 14.99mm for the small end, with a total recovered length of 29.97mm.
The elastomer/silver composite material provides both environmental sealing and potential EMI shielding capabilities. This boot is suitable for protecting cable connectors in demanding environments where moisture, contaminants, and mechanical stress are concerns.
Compliance includes RoHS3 certification and a Moisture Sensitivity Level (MSL) of 1, indicating unlimited floor life. The part is also reported as REACH unaffected. Note that a datasheet is not currently available, and manufacturer page access was restricted.
| Qty | Low | High |
|---|---|---|
| 1+ | $168.82 | $168.82 |
| 10+ | $154.93 | $154.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Shell size 21.
Elastomer/Silver Composite.
Large supplied 20.07mm, large recovered 10.41mm; small supplied 10.92mm, small recovered 5.08mm.
Yes, it is listed as RoHS3 Compliant, but this status is unverified.
Black.
29.97mm (1.180 inches).
MSL 1 - Unlimited, but this status is unverified.
