| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Large Diameter Recovered | |
| Large Diameter Supplied | |
| Large Recovered Length | |
| Material | |
| SVHC Present | |
| Shell Size | |
| Small Diameter Recovered | |
| Small Diameter Supplied | |
| Small Recovered Length | |
| Type |

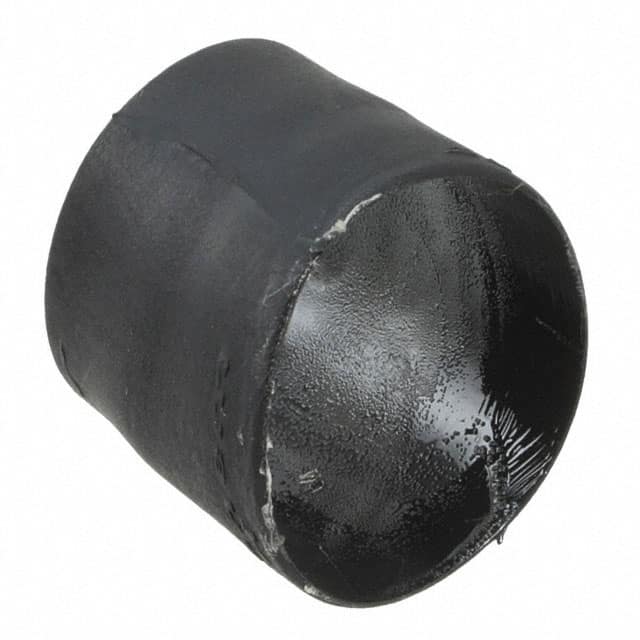

The TE Connectivity 222A121-3/42-0 is a 90° heat shrink boot designed for cable entry protection and strain relief at right-angle connector interfaces. It is made from semi-rigid polyolefin (PO) material and features an adhesive coating that provides environmental sealing when heat-shrunk.
This boot has a shell size of 21 and is supplied with a diameter of 0.980" (24.89mm) on both the large and small ends. After heat application, the large end recovers to 0.402" (10.21mm) over a length of 0.890" (22.61mm), and the small end recovers to 0.209" (5.31mm) over a length of 0.579" (14.71mm). The black color is standard for heat shrink components.
Typical applications include military, aerospace, and industrial equipment where reliable cable sealing and mechanical protection are required. The adhesive coating ensures a moisture-proof seal, and the semi-rigid material provides good structural support. No datasheet or manufacturer page was available for verification at the time of enrichment.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.95 | $21.95 |
| 10+ | $19.22 | $19.22 |
| 25+ | $18.39 | $18.39 |
| 50+ | $17.80 | $17.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Boot - 90°
21
Polyolefin (PO), Semi-Rigid
Yes, it features an adhesive coating for sealing.
Both large and small ends are supplied at 0.980" (24.89mm).
Large end recovers to 0.402" (10.21mm) over 0.890" (22.61mm); small end recovers to 0.209" (5.31mm) over 0.579" (14.71mm).
RoHS3 Compliant (unverified).
