| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,264 pcs
|
6264 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Features | |
| Finish | |
| Lead Style | |
| Material | |
| Mating | |
| Minimum PC Board Thickness | |
| Mounting Type | |
| Number of Positions | |
| Termination | |
| Termination Style |

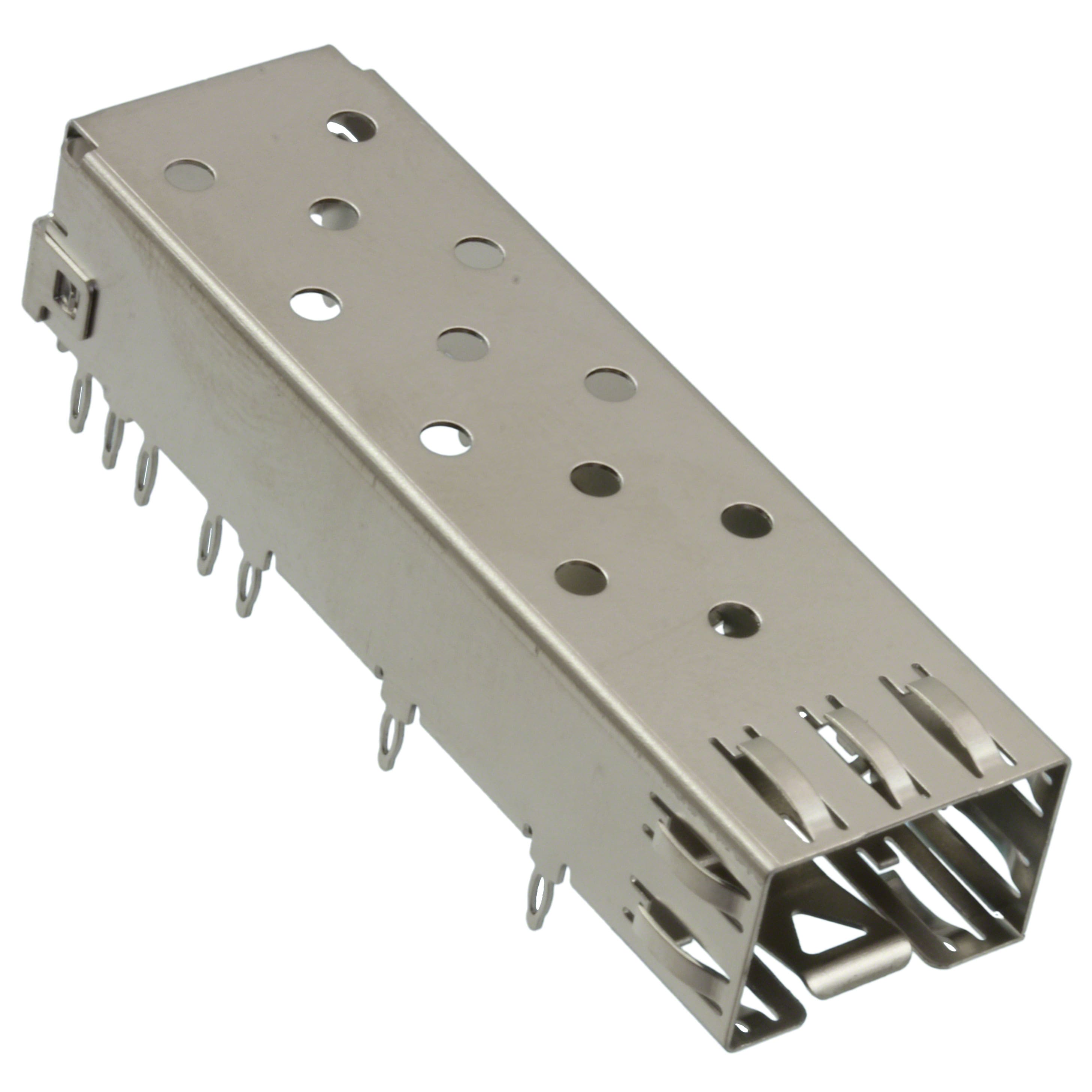

The TE Connectivity 2227023-1 is a single-piece SFP cage connector designed for 1 position press-fit termination with right angle through-hole mounting. It is constructed from 0.25mm thick stainless steel with a nickel finish, with non-plated edges permissible. The connector includes EMI shielding and mates with SFP MSA compliant transceivers.
This connector requires a minimum PC board thickness of 1.50 mm for single-sided boards. Reference application specification 114-13120 for recommended drill hole diameter and plating thickness. The press-fit termination provides a secure electrical and mechanical connection without soldering.
Typical applications include networking equipment such as switches, routers, and data center infrastructure where SFP transceivers are used for high-speed data transmission. The EMI shielding helps reduce electromagnetic interference in sensitive environments.
1 position.
Through hole, right angle.
Press-fit.
0.25mm thick stainless steel.
Nickel finish.
SFP MSA compliant transceivers.
1.50 mm for single-sided boards.
