| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
525 pcs
|
525 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

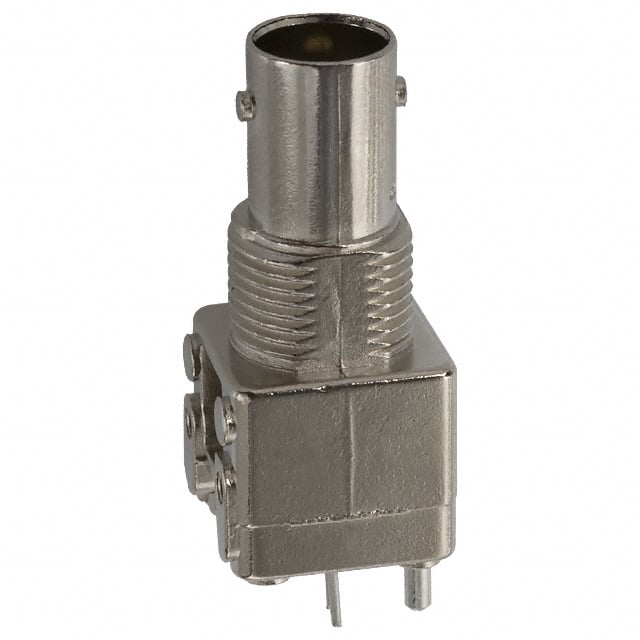

The TE Connectivity 222132-1 is a BNC coaxial connector designed for RF applications requiring 75 Ohm impedance. It is a jack with a female socket contact, supporting frequencies up to 2 GHz. The connector features a bayonet lock fastening type for secure mating. It is designed for panel mount through hole installation with a bulkhead front side nut mounting feature. Both the center contact and shield are terminated via solder, ensuring reliable electrical connections. The center contact is made of beryllium copper, and the housing is silver in color. This single-port connector is suitable for use in various RF systems where a compact and reliable 75 Ohm interface is needed.
| Qty | Low | High |
|---|---|---|
| 35+ | $11.04 | $11.04 |
| 70+ | $10.82 | $10.82 |
| 175+ | $10.61 | $10.61 |
| 1,400+ | $10.40 | $10.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
75 Ohm.
2 GHz.
BNC jack with female socket.
Panel mount through hole with bulkhead front side nut.
Solder termination for both center contact and shield.
