| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

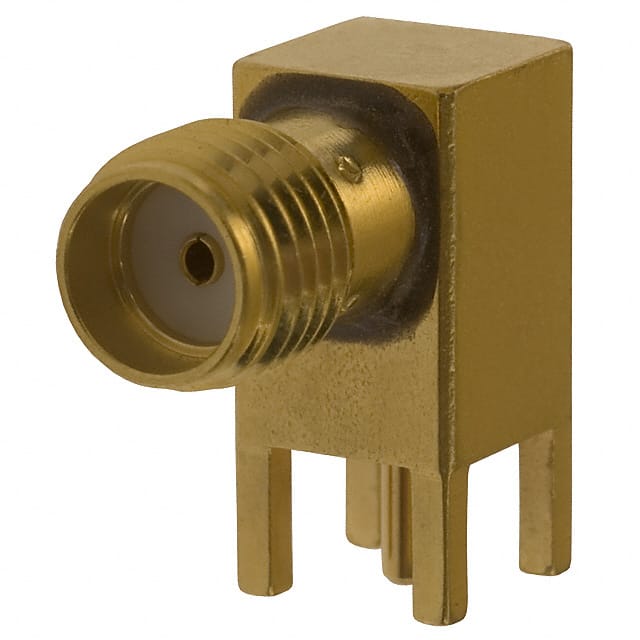

The TE Connectivity 221790-1 is an SMA jack connector with a female socket interface. It features a 50 Ohm impedance and supports frequencies up to 4 GHz, making it suitable for RF applications. The connector is mounted through hole with a right angle orientation, and uses threaded fastening for secure mating. Both the center contact and shield are terminated via solder, and the center contact is made of beryllium copper. The housing is finished in gold. This connector is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 Unlimited, though these compliance statuses are unverified. It is intended for use in PCB-based RF assemblies.
SMA jack, female socket.
50 Ohm.
4 GHz.
Through hole, right angle.
Solder for both contact and shield.
Beryllium copper.
Gold.
