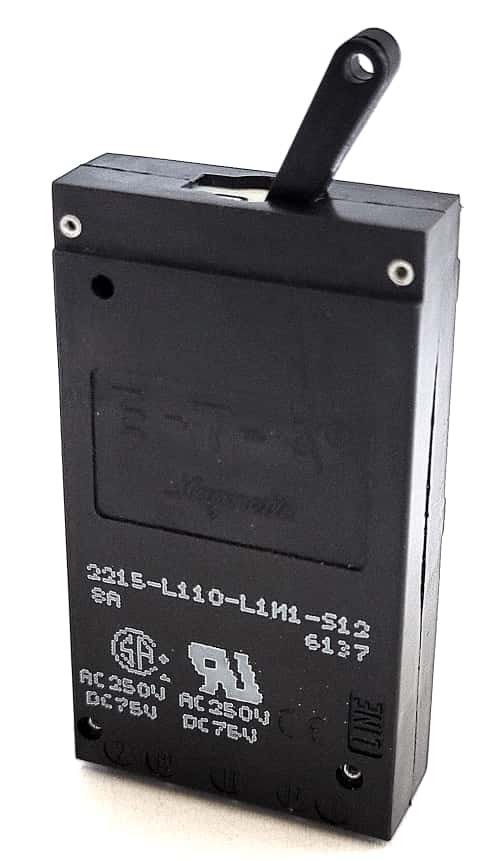

This E-T-A 2215-L110-L1M1-S12-8A is a miniaturized single-pole thermal-magnetic circuit breaker with a trip-free mechanism and toggle actuation, compliant with EN 60934 (IEC 60935).
It is designed for printed circuit board (PCB) mounting and features solder pin termination. The breaker has a current rating of 8A and a voltage rating of 250VAC or 50VDC (UL rating of 75VDC). It includes a medium delay characteristic (M1) and an auxiliary contact (S12).
Key technical specifications include an interrupting capacity of 300A (Icn) and 1,000A to 2,000A per UL 1077. The operating temperature range is -30°C to +60°C. The degree of protection for the operating area is IP30.
Typical applications for this circuit breaker include control equipment, communications systems, and instrumentation. Its compact size and PCB mounting make it suitable for integration into various electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 8A.
It is rated for 250 VAC and 75 VDC (UL).
It is designed for PCB mounting.
The operating temperature range is -30°C to +60°C.
Yes, it features auxiliary change-over contacts (S12).
