| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
440 pcs
|
440 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

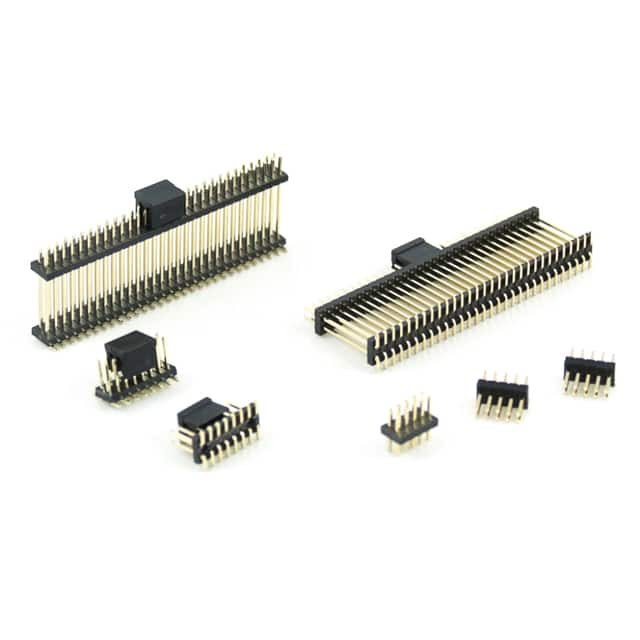

This is a 6-pin, double row, unshrouded male pin header from Oupiin, part number 2215-2X03G00DN-3T-P. It is designed for board-to-board applications and uses surface mount technology for soldering. The connector has a push-pull fastening type and includes board guide and pick-and-place features for automated assembly.
Key electrical specifications include a current rating of 1A per contact. The operating temperature range is -40°C to 105°C. The contacts are made of copper alloy with a gold flash finish, and the insulation material is plastic with a UL94 V-0 flammability rating.
The header has a pitch of 1.27mm and a row spacing of 1.27mm. The insulation height is 1.00mm, and the contact length is 3.00mm. All 6 positions are loaded. The mounting type is surface mount, and termination is solder.
6 positions, all loaded.
1.27mm (0.050 inches).
1A.
Surface mount.
-40°C to 105°C.
Gold flash.
Push-pull.
