| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,920 pcs
|
1920 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature Range | |
| Color | |
| Contact Material | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Housing Material | |
| IP Rating | |
| Insulation | |
| Lead Style | |
| Number of Wire Entries | |
| Operating Temperature Range | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Range | |
| Wire size |

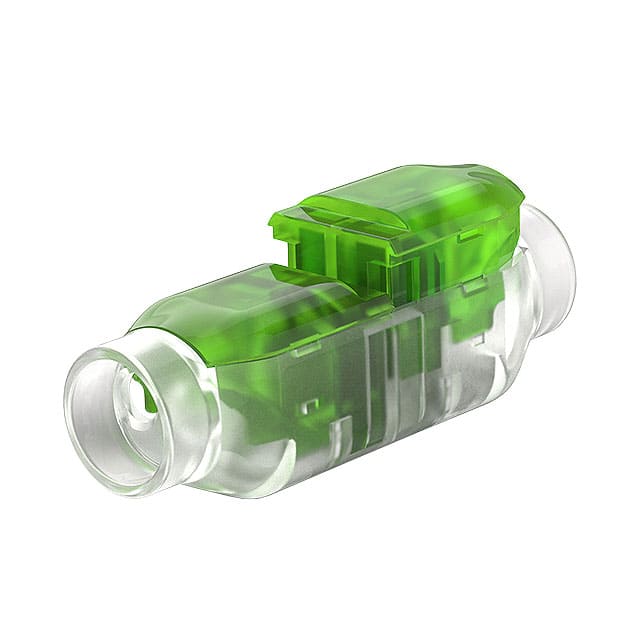

The TE Connectivity 2213800-1 is a CoolSplice inline wire splice connector designed for splicing 18 AWG solid or stranded wire. It features 4 individual wire entries and uses insulation displacement contact (IDC) termination, eliminating the need to strip wires before connection.
Electrical ratings include 600V AC/DC (UL) and 450V (IEC), with a current rating of 6.2A (UL) and 5A (IEC) for 18 AWG wire. The connector is fully insulated with a translucent green polycarbonate housing rated UL94V-2 and UL746C f1, and tin-plated copper alloy contacts.
The splice is suitable for a wide range of environmental conditions, with an IP rating of IP20, IPX5, IPX7, and IPX8 (2 hours at 1m). Operating temperature range is -40°C to 105°C, with ambient temperature range of -40°C to 75°C. Termination is performed using standard pliers to push-button actuate the IDC mechanism.
For 18 AWG wire, the current rating is 6.2 A under UL 2459 and 5 A under IEC 60998-2-3.
600 V under UL and 450 V under IEC.
Yes, it is rated IP20, IPX5, IPX7, and IPX8 (2 hours at 1 meter immersion).
The connector accepts 22 AWG to 18 AWG (0.34 mm² to 0.75 mm²) solid or stranded wire.
No, it uses IDC (insulation displacement contact) termination, so no pre-stripping is needed.
-40°C to 105°C operating temperature, and -40°C to 75°C ambient temperature.
Polycarbonate with UL94V-2 and UL746C f1 ratings.
