| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
467 pcs
|
467 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Features | |
| Housing Color | |
| Housing Material | |
| IP Code | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Panel Cutout (Recommended) | |
| Panel Thickness (Recommended) | |
| Polarization Code | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

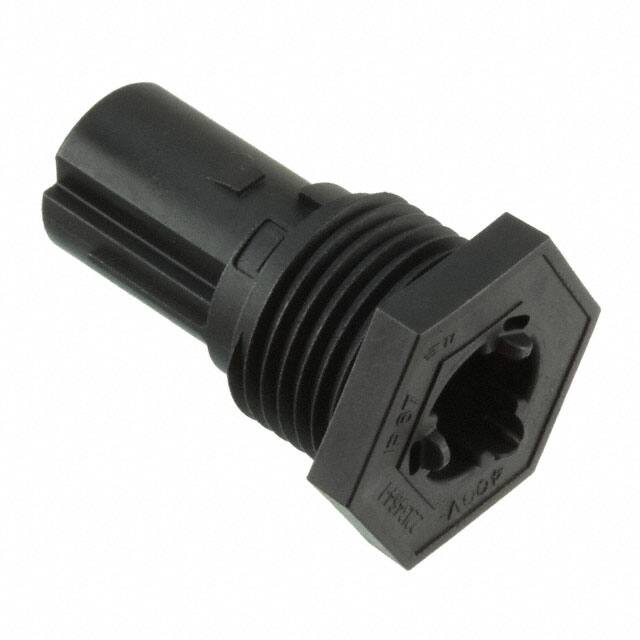

The TE Connectivity 2213464-1 is a 3-position receptacle housing designed for pin contacts in solid state lighting applications. Part of the Sealed NECTOR family, it features a glass-filled PBT housing in black with IP67 environmental sealing. The housing is rated for 250V operation and supports a wide operating temperature range of -40°C to 85°C. This panel mount connector requires a recommended panel cutout of 18.0 x 8.3 mm and a panel thickness of 1.5 to 4.0 mm. Crimp termination is used for wire attachment, and the keyed polarization (Type A) ensures correct mating. The housing is RoHS3 compliant. This component is suitable for use in lighting fixtures, industrial controls, and other harsh environment applications where a sealed power connection is required. Mating pin contacts are sold separately.
3 positions.
250V.
Panel mount.
IP67.
-40°C to 85°C.
Type A.
Glass filled PBT.
