| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
355 pcs
|
355 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Housing Color | |
| Housing Flammability | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| UL Recognition | |
| Voltage Rating | |
| Wire Gauge |

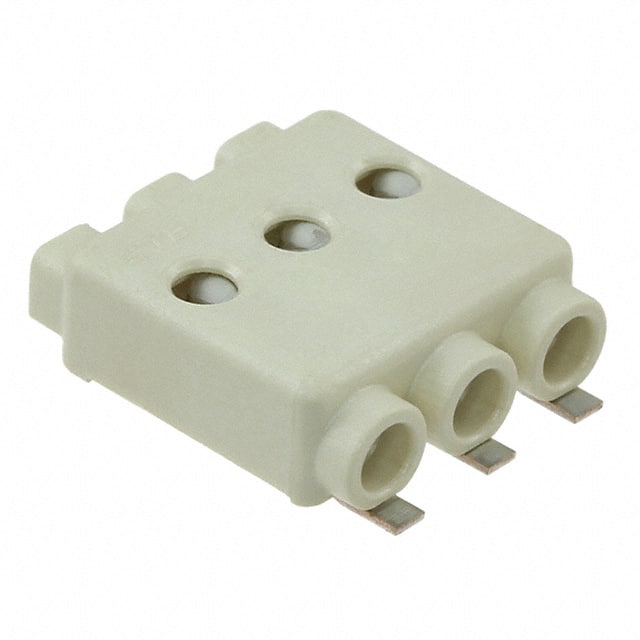

The TE Connectivity 2213301-3 is a 3-position solid state lighting connector assembly featuring a 4.00mm pitch and a surface mount right angle termination. It utilizes a poke-in wire connection style, accepting 18 to 22 AWG solid or stranded conductors. The connector is rated for 9A current with 18 AWG wire and 5A with 20-22 AWG, with a voltage rating of 600 VAC/DC. Operating temperature range is -40°C to 130°C per the datasheet. The housing is made of UL 94 V0 liquid crystal polymer (LCP) in white, and contacts are tin over nickel plated copper alloy. This connector is designed for board-to-cable/wire applications, ideal for LED lighting and other SSL modules. It is packaged in tape and reel for automated SMT processing.
3 positions.
4.00mm.
9A for 18 AWG wire, 5A for 20-22 AWG wire.
600 VAC/DC.
Surface mount, right angle.
18 AWG, 20 AWG, 22 AWG.
-40°C to 130°C (per datasheet).
