| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
368 pcs
|
368 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Housing Color | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Wire Gauge |

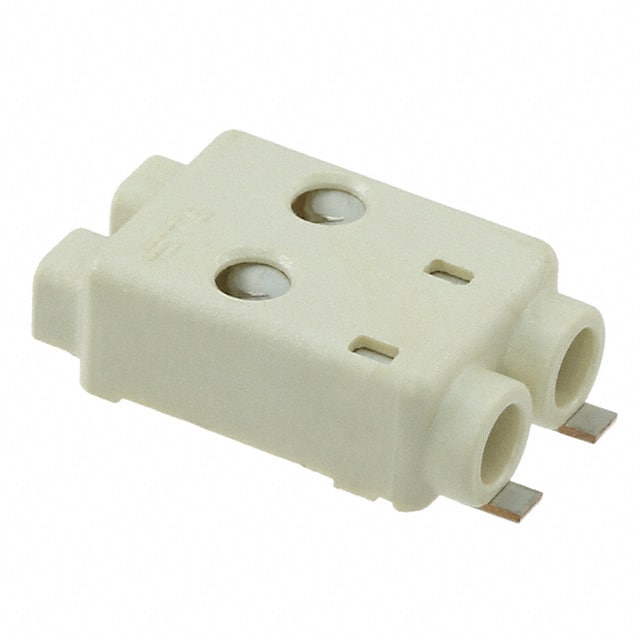

TE Connectivity 2213301-2 is a releasable poke-in wire connector designed for solid state lighting applications. It is a 2-position receptacle with a 4mm pitch, surface mount right angle mounting, and solder termination. The connector accepts 18 to 22 AWG solid and stranded conductors, with current ratings of 9A for 18 AWG and 5A for 20-22 AWG, and a voltage rating of 600 VAC/DC. The housing is made of liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and the contacts are tin over nickel plated copper alloy. The operating temperature range is -40°C to 130°C. The connector features a low profile design with rounded corners to minimize shadowing in LED lighting, and it is side-by-side stackable on 4mm spacing. It is packaged in tape and reel for high-speed SMT processing. The integral wire release mechanism allows for easy rework without specialized tools.
| Qty | Low | High |
|---|---|---|
| 16,000+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
4.00mm (0.157 inches).
9A for 18 AWG wire, 5A for 20-22 AWG wire.
600 VAC/DC.
Surface mount, right angle.
18 AWG, 20 AWG, and 22 AWG solid or stranded conductors.
-40°C to 130°C.
