| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

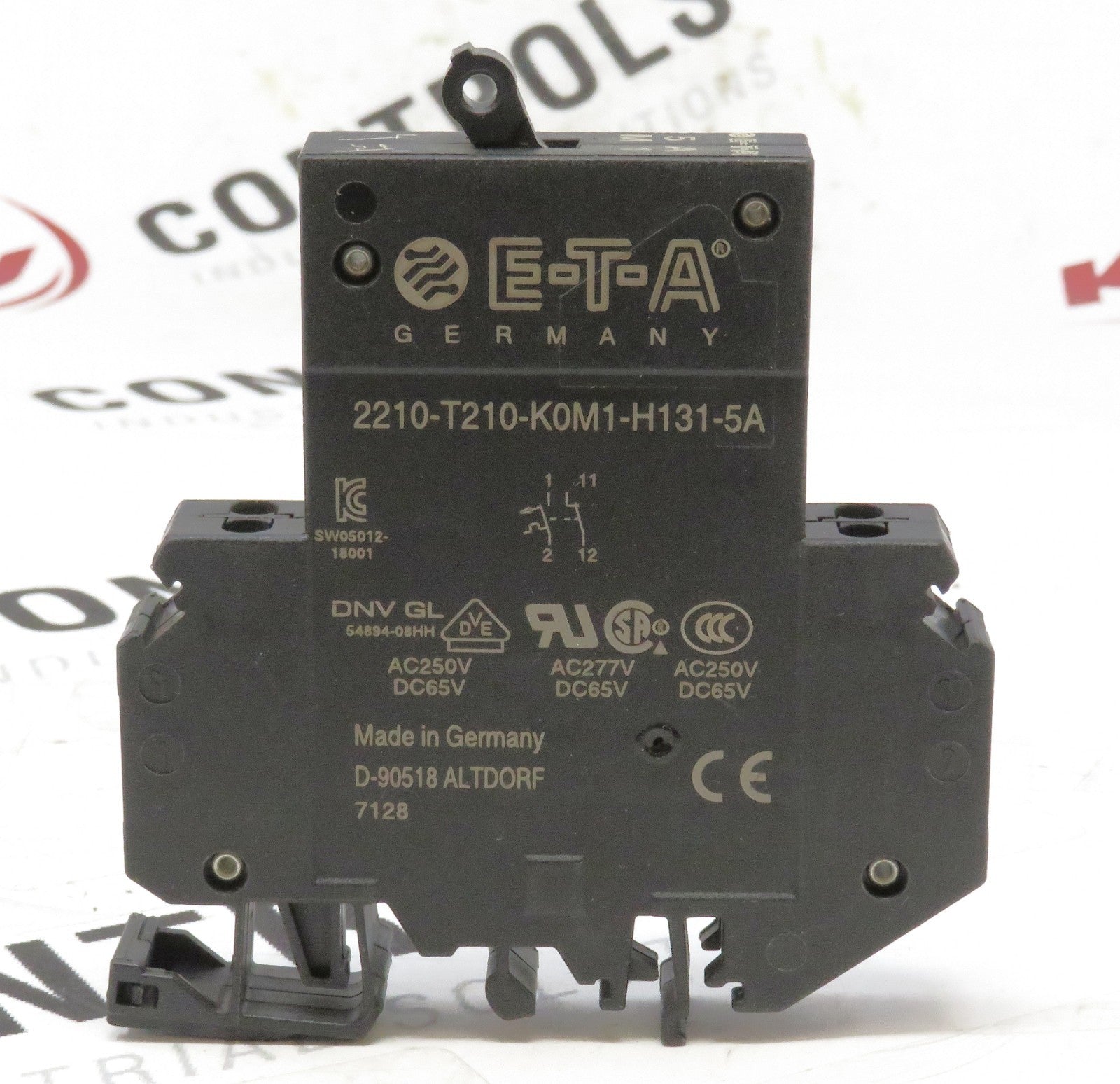

The E-T-A 2210-T210-K0M1-H131-5A is a single-pole thermal-magnetic circuit breaker compliant with EN 60934/IEC 934 standards. It is designed for reliable overcurrent protection in various applications.
Key electrical specifications include a current rating of 5A and a voltage rating of 250VAC or 65VDC. The breaker features a trip-free mechanism and toggle actuation. It is approved by CSA, IEC, UL, and GB standards, allowing for global use.
This circuit breaker is suitable for mounting on DIN rails, offering a compact solution for control panels and equipment. Its thermal-magnetic tripping mechanism ensures precise protection against overloads and short circuits. The device is also approved for use in demanding environments, including those requiring high vibration resistance.
Typical applications for this series include process control equipment, robotics, machine tool control, communications systems, and instrumentation. The design prioritizes safety with recessed screw terminals and robust construction.
The circuit breaker is rated for 250VAC and 65VDC.
The current rating is 5A.
It is a thermal magnetic circuit breaker.
It is a single-pole (1 pole) circuit breaker.
The operating temperature range is -30 to +60 degrees Celsius.
It is designed for DIN rail mounting.
It is approved to CSA C22.2 No 235, IEC 60934, UL1077, and GB 17701.
