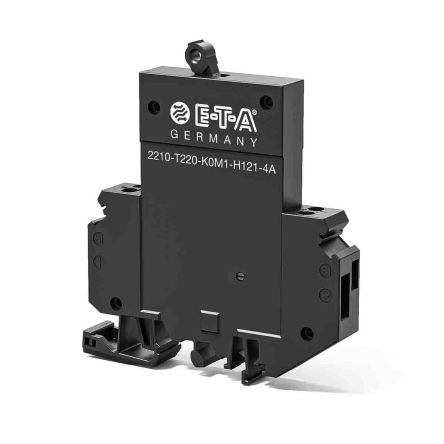

The E-T-A 2210-T210-K0M1-H121-1A is a single-pole thermal magnetic circuit breaker from the 2210 series. It is designed for reliable circuit protection in various applications, including process control equipment, robotics, machine tool control, communications systems, and instrumentation.
This circuit breaker has a current rating of 1A and a voltage rating of 480V. It features a lever actuator and is designed for DIN rail mounting, offering a width of 12.5mm. The breaker is approved by CSA C22.2 No 235, GB 17701, IEC 60934, and UL1077, ensuring global compliance.
Key specifications include a thermal magnetic breaker type, a 1A current rating, and a 480V voltage rating. The device is built to withstand demanding environments, with a typical life of 10,000 operations under inductive load conditions. It operates within an ambient temperature range of -30°C to +60°C.
The voltage rating is AC 250 V; 3 AC 433 V (50/60 Hz); DC 65 V; UL: AC 277/480 V; DC 65 V.
The current rating is 1A for this specific variant, with the series supporting up to 32A for curves M1, T1 and 16A for curves F1, F2.
It is a 1-pole circuit breaker.
It mounts on a DIN Rail.
It is approved to CSA C22.2 No 235, GB 17701, IEC 60934, and UL1077.
Typical life is 10,000 operations under inductive loads at 3 AC 433 V / AC 250 V and DC 65 V, and 6,000 operations under resistive load at 32 A.
The ambient temperature range is -30 to +60 °C.
