| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

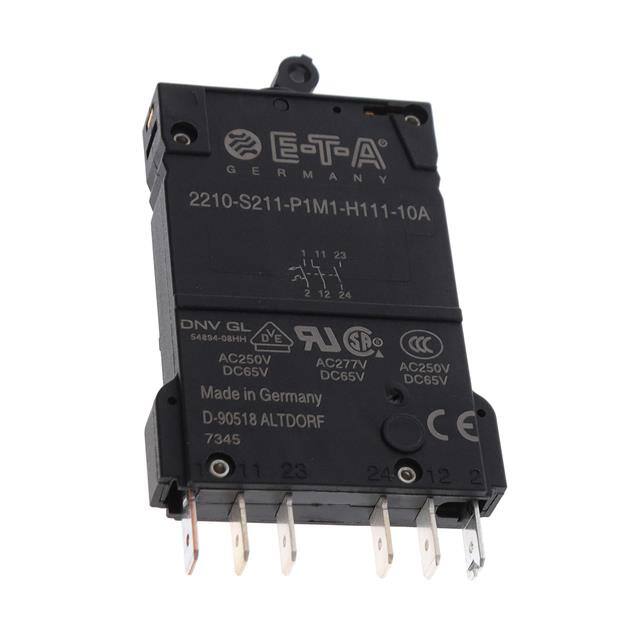

This E-T-A 2210-S211-P1M1-H111-10A is a single-pole thermal-magnetic circuit breaker, part of the S2 series, designed for reliable circuit protection. It offers a current rating of 10A and is suitable for AC voltages up to 277V and DC voltages up to 65V.
The breaker features a trip-free mechanism and toggle actuation, ensuring safe operation. It is designed for panel mounting, making it suitable for integration into various equipment and control panels. The device is approved to CBE standard EN 60934 (IEC 60934) and UL1077.
Key technical data includes an interrupting capacity of 800A (Icn) and 5,000A (UL 1077). The operating temperature range is from -30°C to +60°C. This circuit breaker is ideal for applications requiring robust overcurrent protection in industrial and commercial settings.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 277 VAC and 65 VDC.
The current rating is 10A.
This circuit breaker has 1 pole.
It supports panel mounting.
The operating temperature range is -30°C to +60°C.
It is approved by CSA C22.2 No 235, GB 17701, IEC 60934, and UL1077.
