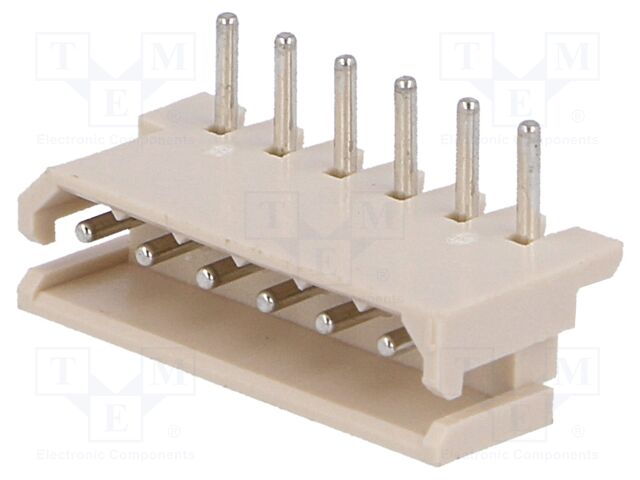

22057065 The Molex 22-05-7065 is a wire-to-board connector socket with 6 male positions. It features a right-angle orientation and a 2.5mm contact pitch.
Mfr Part #:

22057065

Available from 1 distributors
Mfr Name: NA
NA
The Molex 22-05-7065 is a wire-to-board connector socket with 6 male positions. It features a right-angle orientation and a 2.5mm contact pitch.
✓ Total Stock: 4,500 pcs
$ Price Range: $1.17

22057065 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

22057065 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Plating
Failure Rate
Gender
Mounting Type
Number of Positions
Orientation
View Similar Products (0)

22057065 Description

Short technical summary and product information.

This Molex 22-05-7065 connector is a wire-to-board socket designed for male connections. It offers 6 positions arranged in a 1x6 layout, with a contact pitch of 2.5mm. The connector has a right-angle orientation, suitable for PCB mounting.



Key electrical specifications include a maximum current rating of 3A and a maximum operating voltage of 0.25kV. The contacts are tinned for reliable conductivity. The mounting type is Through Hole (THT), designed for secure placement on printed circuit boards.



This component belongs to the Mini-SPOX series from Molex. It is packaged in bags, with a standard quantity of 10 pieces per bag. The connector is specified as RoHS3 Compliant and has an MSL of 1.

22057065 Quick Information

Product Type: Wire-to-Board Connector
Series: Mini-SPOX
Canonical Name: Molex 22-05-7065 Wire-to-Board Connector Socket, Male, 6 Positions, 2.5mm Pitch, Right Angle
Subcategory: Socket

22057065 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

22057065 Estimated Pricing

Qty Low High
1+ $1.17 $1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

22057065 Features

  • Wire-to-board connector socket, male
  • 6 positions with 2.5mm contact pitch
  • Right-angle orientation for PCB mounting
  • 3A maximum current rating
  • Through hole mounting type

22057065 Applications

  • Ideal for connecting wires to PCBs
  • Suitable for right-angle PCB applications
  • Used in general electronic assemblies
  • Compact design for space-constrained areas

22057065 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum operating voltage of the Molex 22057065?

0.25 kV (250 V).

What is the maximum current rating of the Molex 22057065?

3 A.

How many positions does the Molex 22057065 have?

6 positions arranged in a 1x6 layout.

What is the contact pitch of the Molex 22057065?

2.5 mm.

What is the mounting type of the Molex 22057065?

Through hole mounting on PCBs.

What is the orientation of the Molex 22057065 connector?

Right angle (90°).

What series is the Molex 22057065 part of?

Mini-SPOX series.
