| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Height Above Board | |
| Insertion, Removal Method | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions |

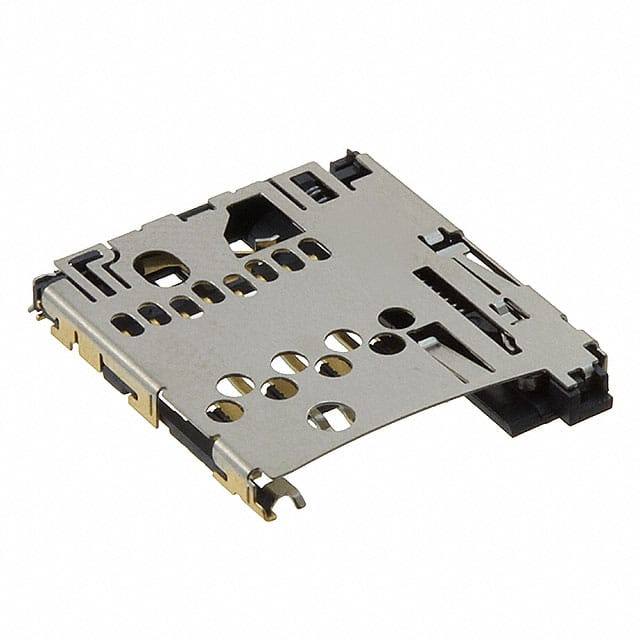

The TE Connectivity 2201778-1 is a Secure Digital microSD card connector designed for reliable memory card interfacing. It integrates both connector and ejector functions in one surface-mount package.
The connector provides 8 positions for electrical connection and uses a gold-palladium contact finish for corrosion resistance and consistent signal integrity. It is configured for surface mount, right angle orientation with a standard top mounting feature. Card insertion and removal is push-in, push-out.
With a height above board of just 1.65 mm (0.065"), this low-profile connector is suitable for space-constrained designs in portable electronics, IoT devices, and embedded systems requiring removable storage. The right-angle format allows horizontal card insertion, saving vertical board space.
The connector accepts Secure Digital microSD cards.
The connector has 8 positions.
Surface mount, right angle.
The contact finish is Gold-Palladium.
The height above board is 1.65 mm (0.065 inches).
