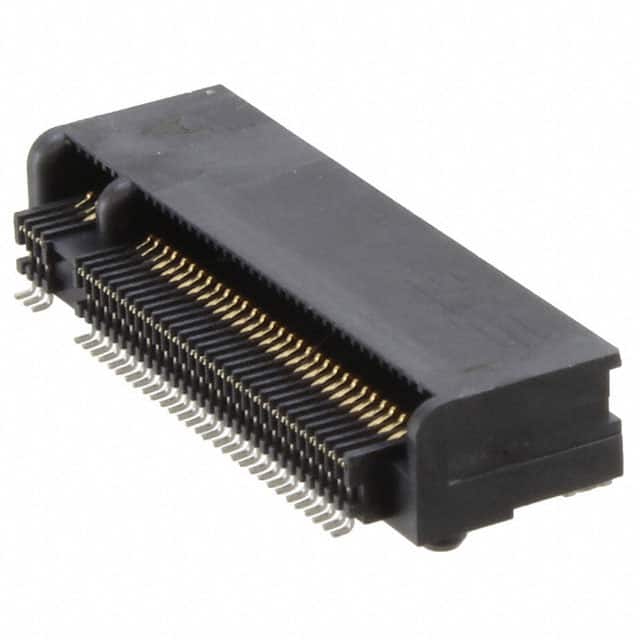

This is an M.2 (NGFF) Mini Card female connector from TE Connectivity, part number 2199230-8. It features 67 positions arranged in two rows with a 0.50mm pitch, providing a compact interface for M.2 modules. The connector is surface mount, right angle, and has gold-plated contacts (15.0µin thickness) on copper alloy material for reliable conductivity.
Designed for edgeboard applications, it includes a board guide and keyed feature for proper alignment during insertion. The operating temperature range is -40°C to 80°C, making it suitable for a variety of environments. The connector body is black in color and has a dual readout configuration.
This connector is commonly used in computing and telecommunications equipment where space is limited, supporting high-speed interfaces such as PCIe and SATA. Its surface mount design enables automated assembly processes.
67 positions.
0.50mm (0.020 inches).
Surface Mount, Right Angle.
-40°C to 80°C.
Gold, 15.0µin (0.38µm) thickness.
M.2 (NGFF) Mini Card.
Black.
