| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| SVHC Present | |
| Termination | |
| Termination Style |

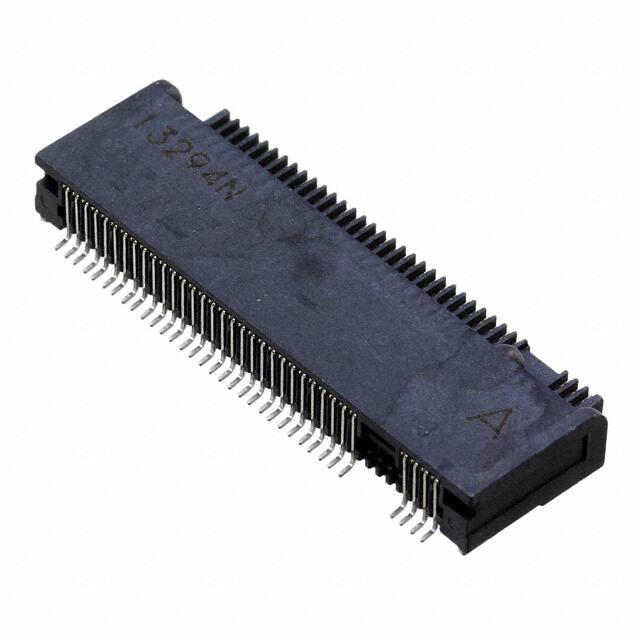

The TE Connectivity 2199119-8 is an M.2 (NGFF) Mini Card connector designed for high-density edge card applications. This female connector offers 67 positions arranged in a dual-row configuration with a 0.50mm pitch, enabling compact designs in space-constrained devices.
With a surface mount, right angle mounting style, the connector facilitates low-profile connections parallel to the PCB. The contacts are made of copper alloy with a gold finish of 15µin (0.38µm), ensuring reliable signal integrity and corrosion resistance. The connector includes a board guide feature to assist alignment during assembly.
Operating temperature ranges from -40°C to 80°C, making it suitable for industrial and commercial environments. The connector is RoHS3 compliant (unverified) and has an MSL rating of 1 (unlimited, unverified). It is intended for use in M.2 interfaces such as SSDs, wireless modules, and other mini card peripherals.
The pitch is 0.50mm (0.020").
The connector has 67 positions.
Surface Mount, Right Angle.
Gold, with a thickness of 15.0µin (0.38µm).
-40°C to 80°C.
Female.
Board guide.
