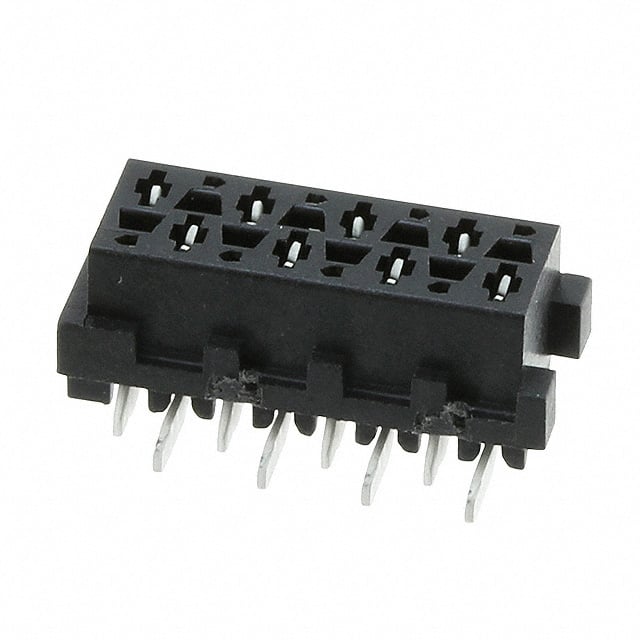

2178711-8 The 2178711-8 is a 8-position, 2-row receptacle connector from TE Connectivity featuring a 2.54mm pitch, tin contact finish, and surface mount termination.
Mfr Part #:

2178711-8

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The 2178711-8 is a 8-position, 2-row receptacle connector from TE Connectivity featuring a 2.54mm pitch, tin contact finish, and surface mount termination.
✓ Total Stock: 490 pcs
$ Price Range: $0.45 - $0.64

2178711-8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
490 pcs
On Request
490 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2178711-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Insulation Color
Insulation Height
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

2178711-8 Description

Short technical summary and product information.

The TE Connectivity 2178711-8 is a rectangular connector designed for board-to-board or cable applications. It is a receptacle type with 8 positions arranged in 2 rows, offering a 2.54mm pitch and 2.54mm row spacing. The connector uses forked contacts with a tin finish of 3.00µm thickness, suitable for repeated mating cycles.



This surface mount component uses solder termination and features a push-pull fastening mechanism for secure engagement. The black insulation has a height of 5.30mm and is rated for an operating temperature range of -30°C to 85°C. The voltage rating is 100VDC, making it appropriate for low-voltage signal and power applications.



The connector is designed for surface mount assembly, enabling automated pick-and-place processes. Its compact 8-position layout and standard 2.54mm pitch make it compatible with common prototyping and production boards.

2178711-8 Quick Information

Product Type: Receptacle Connector
Canonical Name: 2178711-8 8 Position Receptacle Connector, 2.54mm Pitch, Surface Mount
Subcategory: Female Sockets

2178711-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

2178711-8 Estimated Pricing

Qty Low High
900+ $0.64 $0.64
1,800+ $0.62 $0.62
2,700+ $0.61 $0.61
3,600+ $0.62 $0.62
5,400+ $0.52 $0.52
10,800+ $0.45 $0.45

Estimated market price range - modelled values for guidance only, not live distributor offers.

2178711-8 Features

  • 8-position, 2-row receptacle connector.
  • 2.54mm pitch for standard board spacing.
  • Surface mount termination for automated assembly.
  • Tin plated contacts for reliable conductivity.
  • Rated for 100VDC operation.

2178711-8 Applications

  • Board-to-board interconnection in compact electronics.
  • Used in industrial control systems.
  • Suitable for consumer electronics prototyping.
  • Ideal for wire-to-board harness assemblies.

2178711-8 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 2178711-8 have?

The connector has 8 positions.

What is the pitch of the 2178711-8?

The pitch is 2.54mm (0.100 inches).

What is the voltage rating of the 2178711-8?

The voltage rating is 100VDC.

What is the mounting type for this connector?

This connector is surface mount (SMD).

What is the operating temperature range of the 2178711-8?

The operating temperature range is -30°C to 85°C.
