| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
839 pcs
|
839 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

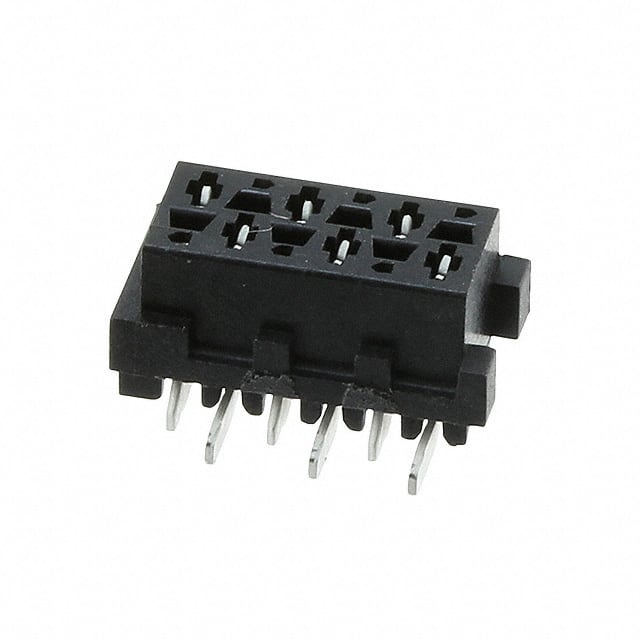

The TE Connectivity 2178711-6 is a 6-position receptacle connector designed for board-to-board or cable applications. It features a 2.54mm pitch and 2.54mm row spacing, with all positions loaded in a dual-row configuration. The connector uses forked contacts with a tin finish (118.1µin thickness) and a push-pull fastening mechanism.
The insulation is black with a height of 5.30mm, and the housing is rated for operating temperatures from -30°C to 85°C. The connector is surface mount with solder termination, making it suitable for automated assembly processes. It is rated for 100V DC and has a Moisture Sensitivity Level of 1 (unlimited floor life).
This connector is commonly used in applications requiring reliable, low-profile interconnections. The tin contact finish provides good solderability and corrosion resistance. The push-pull locking ensures secure mating while allowing easy disconnection.
| Qty | Low | High |
|---|---|---|
| 3,600+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 6 positions, all loaded, in a dual-row configuration.
The pitch is 2.54mm (0.100 inches).
The voltage rating is 100V DC.
It is a surface mount connector with solder termination.
The operating temperature range is -30°C to 85°C.
The contacts have a tin finish with a thickness of 118.1µin (3.00µm).
It uses a push-pull fastening mechanism.
