| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

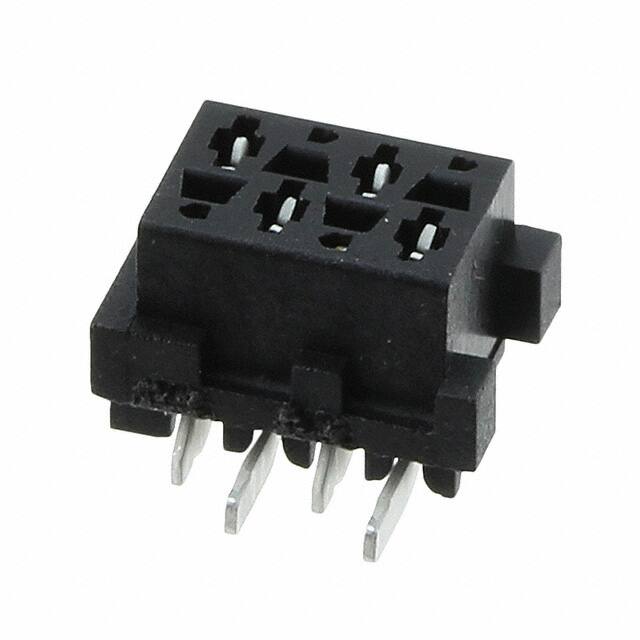

The TE Connectivity 2178711-4 is a 4 position receptacle connector designed for board-to-board or cable applications. It features forked contacts with a tin finish and a 2.54mm (0.100") pitch. The connector is surface mount with solder termination and has a push-pull fastening type. The black insulation has a height of 5.30mm (0.209").
This connector is rated for 100VDC and operates over a temperature range of -30°C to 85°C. It has two rows with all positions loaded. The row spacing is also 2.54mm (0.100"). The contact finish thickness is 3.00µm (118.1µin).
The 2178711-4 is suitable for board-to-board and cable interconnect applications requiring a compact, surface mount connector with standard 2.54mm pitch. The push-pull fastening type allows for easy mating and unmating without additional hardware.
It has 4 positions.
The pitch is 2.54mm (0.100").
It is rated for 100VDC.
It is a surface mount connector with solder termination.
The RoHS status is listed as RoHS3 Compliant, though it is unverified.
