Mfr Part #:

2178040001

Name: 2178040001
Brand: Molex
SKU: 2178040001

Mfr Name: Molex

Description:

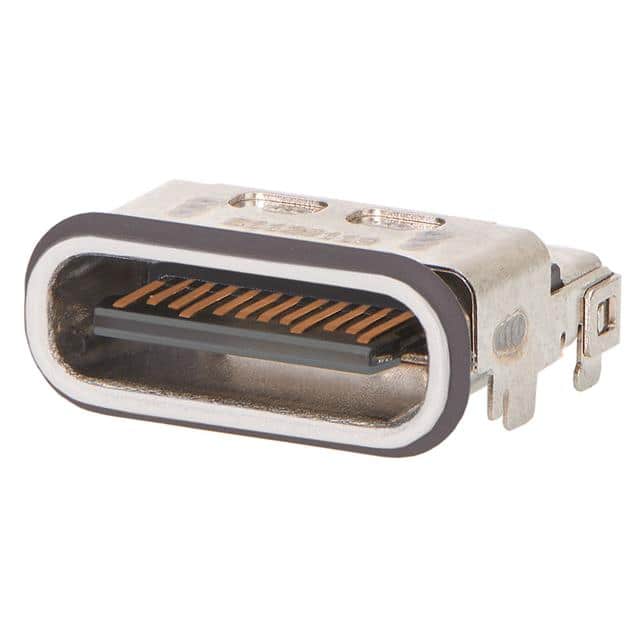

USB C RECEPTACLE, 24PIN

Stock on Request

2178040001 Description

Short technical summary and product information.

USB C RECEPTACLE, 24PIN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	USB, DVI, HDMI Connector Assemblies
Manufacturer Name	Molex
Connector Type	USB-C (USB TYPE-C)
Current Rating (Amps)	0.25A, 1.25A, 5A
Features	Board Guide
Gender	Receptacle
Ingress Protection	IPX8 - Waterproof
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle; Through Hole
Number of Contacts	24
Number of Ports	1
Operating Temperature	-40°C ~ 85°C
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
Voltage	30VDC
