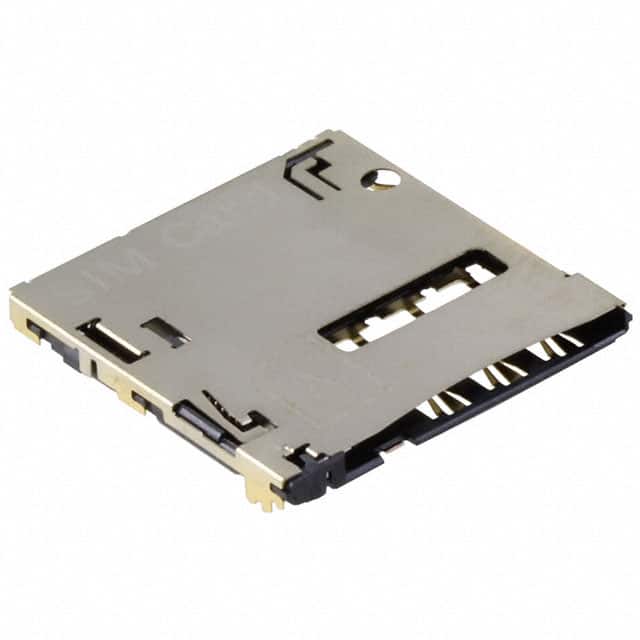

2174803-2 Micro SIM card connector with 7 positions (6+1), right angle surface mount, gold plating, push-push insertion/removal.
Mfr Part #:

2174803-2

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
Micro SIM card connector with 7 positions (6+1), right angle surface mount, gold plating, push-push insertion/removal.
✓ Total Stock: 1,087 pcs

2174803-2 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,079 pcs
On Request
1079 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request 2026-05-08 04:16:38
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2174803-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Features
Height Above Board
Insertion, Removal Method
Lead Style
Mounting Feature
Mounting Type
Number of Positions
View Similar Products (0)

2174803-2 Description

Short technical summary and product information.

The TE Connectivity 2174803-2 is a Micro SIM card connector designed for surface mount applications. It features a right-angle orientation and a compact height of 1.30 mm, making it suitable for space-constrained designs.



This connector provides 7 positions (6 contacts plus 1 switch) with gold contact finish for reliable connectivity. The push-push insertion and removal method simplifies card handling, and the built-in switch enables card detection. The connector type is connector and ejector, ensuring secure card retention.



The component is mounted using standard surface mount technology (SMT) and is RoHS3 compliant (unverified). The moisture sensitivity level is MSL 1 (unlimited) for storage and handling. These specifications support use in consumer electronics, IoT devices, and other portable applications.

2174803-2 Quick Information

Product Type: SIM Card Connector
Canonical Name: TE Connectivity 2174803-2 Micro SIM Card Connector, 7 (6+1) Positions, Right Angle Surface Mount
Subcategory: PC Card Sockets

2174803-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

2174803-2 Features

  • Micro SIM card connector with 7 positions (6+1).
  • Right angle surface mount for space saving.
  • Gold plated contacts for reliable connections.
  • Push-push insertion and removal mechanism.
  • Includes card detection switch.

2174803-2 Applications

  • Used in mobile phones and tablets.
  • Ideal for IoT and wearable devices.
  • Suitable for portable consumer electronics.
  • Enables SIM card connectivity in compact designs.

2174803-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the card type?

Micro SIM.

How many positions does the connector have?

7 positions (6 contacts + 1 switch).

What is the mounting type?

Surface mount, right angle.

What is the height above board?

1.30 mm.

What is the contact finish?

Gold.

What is the insertion and removal method?

Push in, push out (push-push).

Does the connector have a switch?

Yes, it includes a card detection switch.
