| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Specifications | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

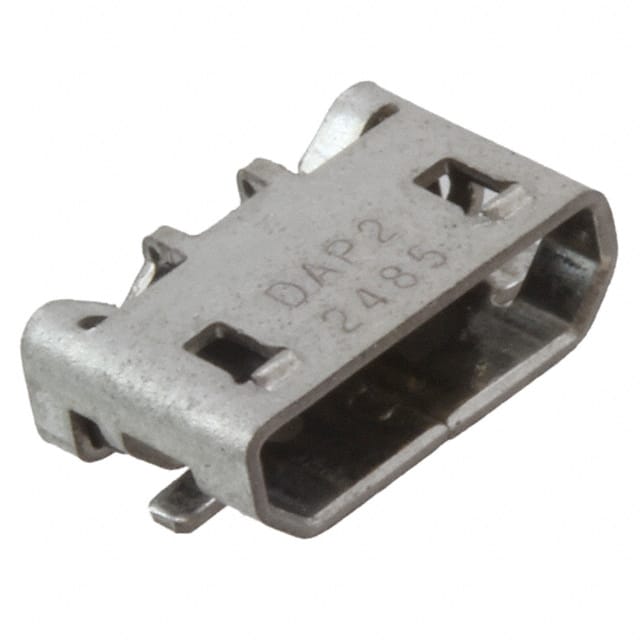

The TE Connectivity 2174507-2 is a USB 2.0 Micro B receptacle connector designed for surface mount, right angle mounting. It features 5 contacts and a single port, supporting current ratings of 500 mA, 1 A, and 1.8 A with a voltage rating of 30 V. The connector is rated for 10,000 mating cycles and operates over a temperature range of -30°C to 85°C.
This connector includes pick and place and solder retention features, making it suitable for automated assembly processes. The horizontal mounting orientation and solder termination facilitate integration into compact electronic designs.
Typical applications include portable electronics, data transfer interfaces, and charging ports where a reliable USB 2.0 connection is required. The connector's design supports high-volume manufacturing with its SMD compatibility.
The connector supports current ratings of 500 mA, 1 A, and 1.8 A.
The voltage rating is 30 V.
It uses surface mount, right angle mounting with a horizontal orientation.
It has 5 contacts.
The operating temperature range is -30°C to 85°C.
It is rated for 10,000 mating cycles.
