Mfr Part #:

2170630077

Name: 2170630077
Brand: Molex
SKU: 2170630077

Mfr Name: Molex

Description:

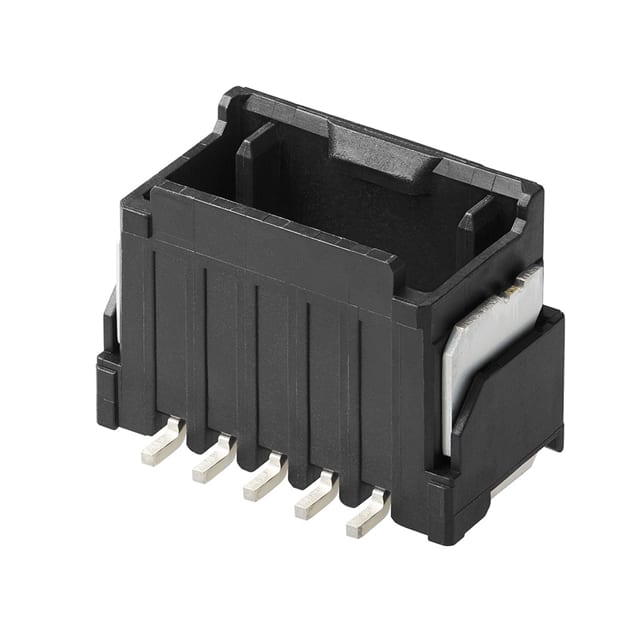

2.0 ST ASSY 7CKT ETP BK CV_GW PO

Stock on Request

2170630077 Description

Short technical summary and product information.

2.0 ST ASSY 7CKT ETP BK CV_GW PO

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

2170630075

Molex

2.0 ST ASSY 7CKT ETP BK_GW POT

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin-Bismuth
Contact Finish Thickness	39.4碌in (1.00碌m)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.390" (9.91mm)
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-40°C ~ 105°C
Pitch	0.079" (2.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250V
