| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
276 pcs
|
276 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cage Material | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Plating (Mating Area) | |
| Contact Plating Tail | |
| Features | |
| Flammability Rating | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Termination | |
| Termination Style | |
| UL |

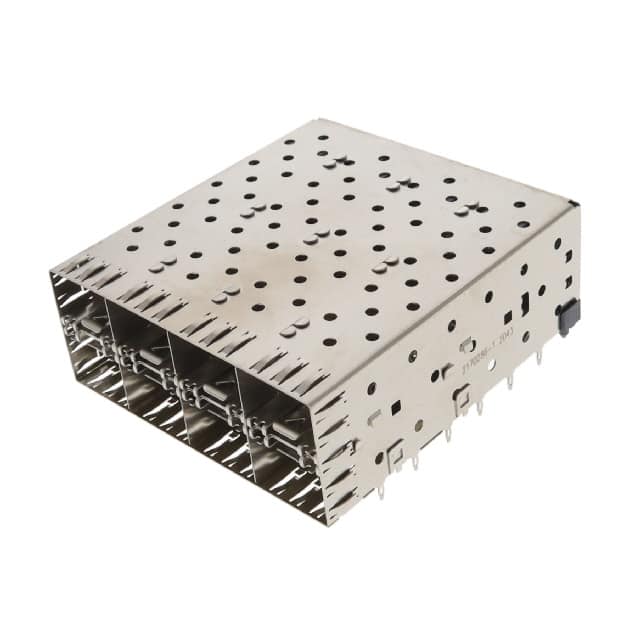

The TE Connectivity 2170286-1 is a 2x4 ganged SFP (Small Form-factor Pluggable) receptacle with integrated cage assembly, designed for high-speed data transmission. It provides 160 total positions, arranged as 20 per port across 8 ports, supporting SFP and SFP+ transceiver modules.
This connector features through-hole right-angle mounting with press-fit termination, eliminating the need for soldering. The press-fit tails provide a reliable mechanical and electrical connection to the PCB. The cage is constructed from nickel silver alloy with no additional plating, and the overall assembly includes EMI shielding for signal integrity.
The housing is made of high-temperature LCP (Liquid Crystal Polymer) rated UL 94V-0, ensuring flame retardancy. Contact mating areas are plated with 0.76µm minimum gold over 1.27µm minimum nickel per ASTM B488 and QQ-N-290, while tail areas are plated with 1.25µm minimum tin over 1.27µm minimum nickel. The contact base material is copper alloy.
Common applications include networking equipment, telecom switches, and data center infrastructure where reliable, high-density interconnectivity is required. The ganged 2x4 configuration saves board space by consolidating eight SFP ports into a single connector assembly.
160 positions (20 per port in a 2x4 ganged configuration).
Through Hole, Right Angle.
Press-Fit.
Gold over Nickel (0.76µm min gold on mating area, tin over nickel on tail).
LCP, High Temperature, UL 94V-0 rated, black.
Yes, the connector features EMI shielding.
Nickel Silver Alloy (no plating).
