| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Features | |
| Housing Material | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

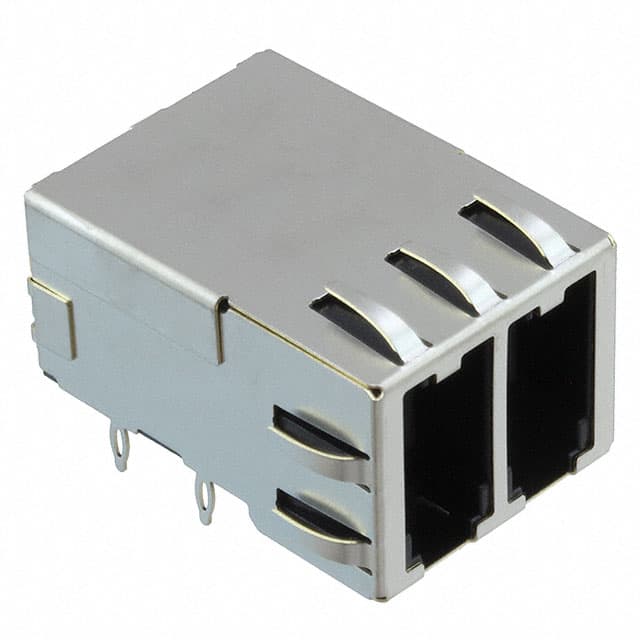

The TE Connectivity 2170129-1 is a shielded 8P8C (RJ45) modular jack with two ports in a single row, designed for right-angle (90°) mounting. It supports board edge, panel mount, and through-hole installation with a Press-Fit termination, eliminating the need for soldering. The jack is rated Cat5e and features a tab-down orientation.
The connector includes an integrated light pipe made of clear polycarbonate, enabling optical status indication from the host board, though it does not contain built-in LEDs. Shielding is provided by a copper alloy shell with nickel plating and includes an EMI finger for enhanced electromagnetic compatibility.
The housing is black thermoplastic rated UL 94V-0, and contacts are phosphor bronze with a gold finish over palladium-nickel at the mating interface. The isolation voltage is rated at 2250 VDC for 60 seconds. The recommended minimum PCB thickness is 1.5 mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.87 | $19.87 |
| 10+ | $16.89 | $16.89 |
| 25+ | $15.83 | $15.83 |
| 64+ | $14.82 | $14.82 |
| 128+ | $14.11 | $14.11 |
| 256+ | $13.44 | $13.44 |
| 512+ | $12.80 | $12.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions (8P8C) for RJ45 Ethernet.
2250 VDC maximum for 60 seconds.
Board edge, panel mount, and through-hole mounting with Press-Fit termination.
Press-Fit, no soldering required.
Yes, with a copper alloy shield and EMI finger.
No, but it has a clear polycarbonate light pipe for external LEDs.
0.05 µm minimum gold over 0.76 µm minimum palladium-nickel on the mating interface.
