| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,250 pcs
|
8250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,804 pcs
|
1804 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current - Max | |
| Data Rate | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Features | |
| Housing Material | |
| Lead Style | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Packaging Type | |
| Termination | |
| Termination Style | |
| Unmating Force | |
| Voltage - Max |

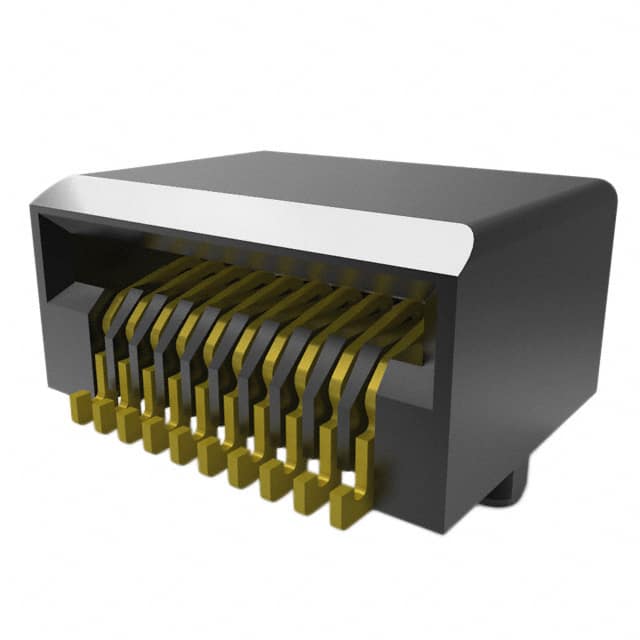

The TE Connectivity zSFP+ receptacle connector (part number 2170088-1) is a 20-position pluggable I/O interconnect designed for high-speed data transmission. It supports data rates up to 28 Gbps NRZ and 56 Gbps PAM-4, making it suitable for 10 Gbps Ethernet and 16 Gbps Fibre Channel applications. The connector features a surface mount, right angle design with solder termination and gold-plated contacts (30.0µin).
This zSFP+ connector is backward-compatible with existing SFP/SFP+ connectors, enabling straightforward system upgrades. It includes a board guide feature and is rated for 120 V AC maximum voltage and 0.5 A maximum current per contact. The housing is made of high-temperature thermoplastic, glass-filled, UL 94V-0 black material, and the contacts are high-performance copper alloy.
Mechanically, the connector has a mating force of 25 N, unmating force of 11.5 N, and a durability of 250 mating cycles. It operates over a temperature range of -40 to +85 °C. Packaging options include Tape & Reel and Cut Tape.
This zSFP+ connector supports data rates up to 28 Gbps NRZ and 56 Gbps PAM-4.
The maximum voltage is 120 V AC and the maximum current per contact is 0.5 A.
It is a surface mount, right angle receptacle with solder termination.
This connector has 20 positions.
The operating temperature range is -40 to +85 °C.
