Mfr Part #:

2169900001

Name: 2169900001
Brand: Molex
SKU: 2169900001

Mfr Name: Molex

Description:

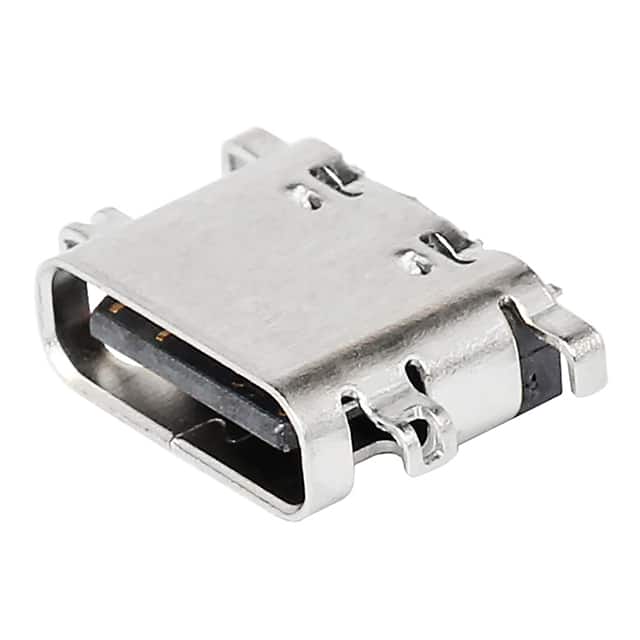

CONN RCP USB2.0 TYP C 24P SMD RA

Stock on Request

2169900001 Description

Short technical summary and product information.

CONN RCP USB2.0 TYP C 24P SMD RA

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

2169900003

Molex

CONN RCP USB2.0 TYP C 24P SMD RA

2169900002

Molex

CONN RCP USB2.0 TYP C 24P SMD RA

Category	USB, DVI, HDMI Connector Assemblies
Manufacturer Name	Molex
Connector Type	USB-C (USB TYPE-C)
Current Rating (Amps)	0.25A, 1.25A, 5A
Gender	Receptacle
Mating Cycles	10000
Mounting Feature	Horizontal, Mid Mount
Mounting Type	Surface Mount, Right Angle; Through Hole
Number of Contacts	24 (16+8 Dummy)
Number of Ports	1
Operating Temperature	-40°C ~ 85°C
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage	30VAC/DC
