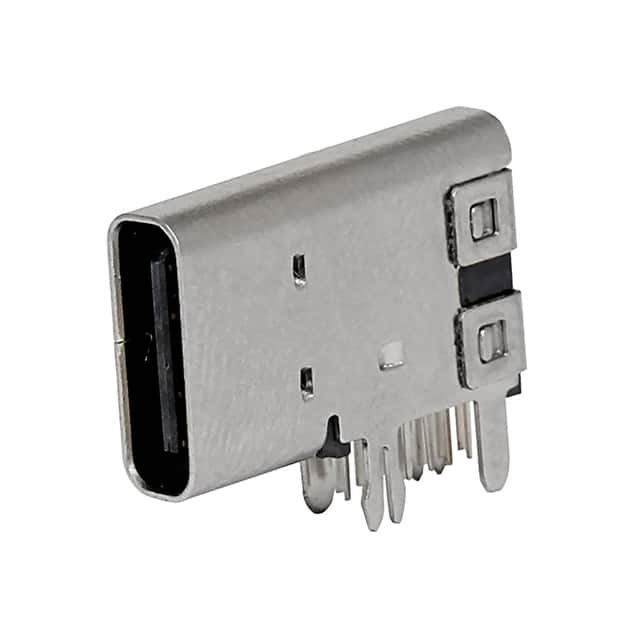

The Molex 2169890001 is a USB Type-C (USB-C) receptacle connector designed for USB 2.0 applications. It features 24 contacts (14+10 dummy) in a single-port, right-angle through-hole mounting configuration with solder termination. The connector is fully shielded for EMI protection and rated for 10,000 mating cycles.
Electrical ratings include a current rating of 5A and a voltage rating of 30VAC/DC. The operating temperature range spans -40°C to 85°C, making it suitable for a wide variety of environments. The vertical mounting feature ensures a low-profile design for space-constrained PCB layouts.
This connector is commonly used in consumer electronics, data interfaces, and industrial equipment requiring a robust USB-C connection. The through-hole mounting provides reliable mechanical retention, while the right-angle orientation allows for cable entry parallel to the board.
USB-C (USB TYPE-C) receptacle.
24 contacts (14+10 dummy).
Through hole, right angle with vertical mounting feature.
5A current, 30VAC/DC voltage.
-40°C to 85°C.
10,000 mating cycles.
