| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
315 pcs
|
315 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination |

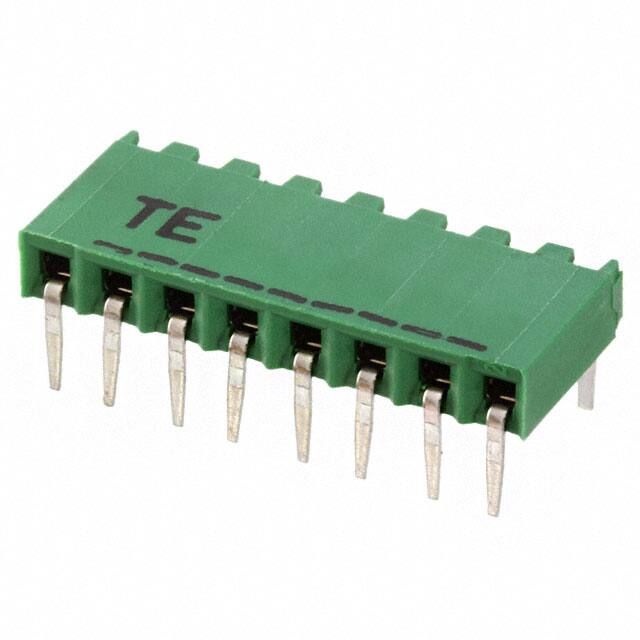

The TE Connectivity 216602-8 is an 8-position receptacle connector designed for board-to-board applications. It features a single row of female sockets with a 2.54mm pitch, suitable for compact PCB designs. The connector uses a push-pull fastening mechanism and is mounted through hole with a right angle orientation, allowing for flexible board layout. The contacts are finished with tin for reliable solderability, with a contact finish thickness of 31.5µin (0.80µm). The insulation is green and rated UL94 V-0 for flammability. The housing provides an insulation height of 3.2mm and contact length of 3.2mm. This connector is RoHS3 compliant and has an MSL classification of Level 1 (unlimited). It is designed for solder termination and is suitable for a variety of electronic interconnection needs.
8 positions.
2.54mm (0.100 inches).
Through hole, right angle.
Push-pull.
Tin with thickness of 31.5µin (0.80µm).
Yes, RoHS3 compliant.
UL94 V-0.
