| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

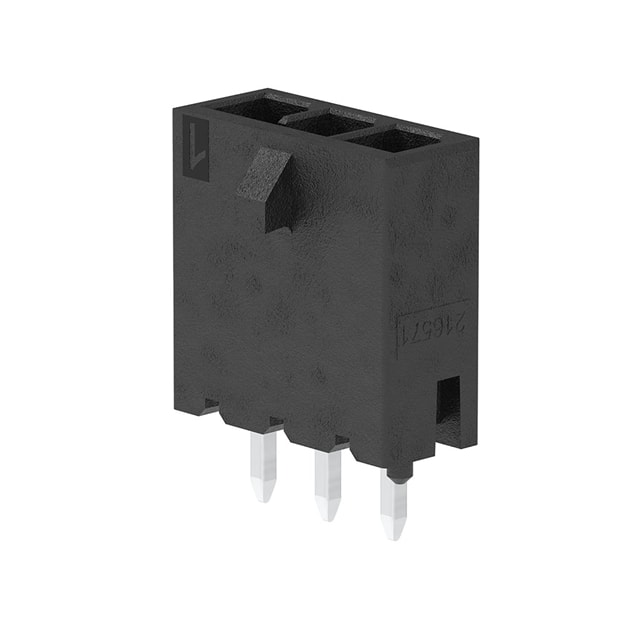

The Molex 2165712003 is a 3 position single row shrouded header from the Micro-Fit Plus family. It is designed for board-to-cable/wire applications and features a 4-wall shrouded housing with a locking ramp for secure mating. The header uses through hole termination with solder contacts.
The contacts are made of copper alloy with a tin finish (15.0µin thickness) and have a square shape. The insulation is black liquid crystal polymer (LCP) glass filled with a UL94 V-0 flammability rating. The header includes a board guide and is glow wire compliant.
This connector is rated for 600VAC/DC and operates over a temperature range of -40°C to 105°C. The current rating varies by wire gauge. The pitch is 3.00mm and the insulation height is 9.91mm.
It has 3 positions in a single row.
The pitch is 3.00mm (0.118 inches).
It is rated for 600VAC/DC.
It is a through hole mounting connector with solder termination.
The operating temperature range is -40°C to 105°C.
Yes, it is a shrouded header with 4-wall shrouding and a locking ramp.
The contacts have a tin finish with a thickness of 15.0µin (0.38µm).
