| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

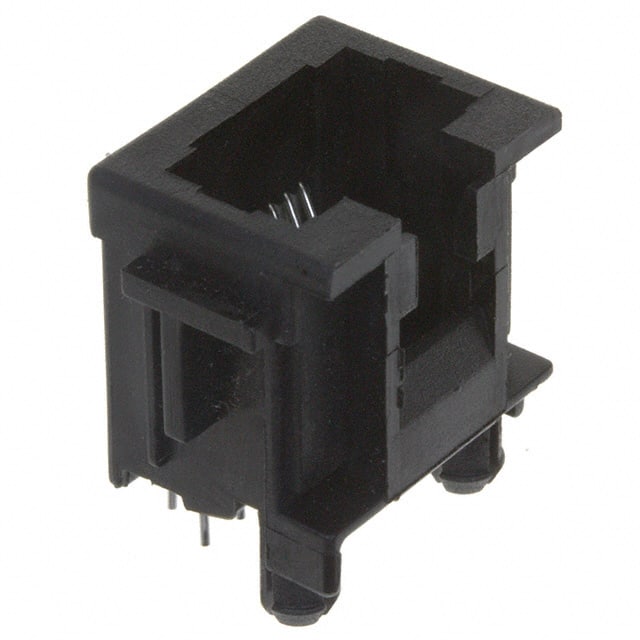

The TE Connectivity 216550-1 is a modular connector jack designed for RJ45 Ethernet applications requiring Cat3 performance. It features a single port with 8 positions (8P8C) in a single row configuration.
The connector is mounted vertically through hole and terminated via solder. It is unshielded and does not contain LEDs. The tab direction is user selectable, offering flexibility in panel orientation.
Key mechanical features include a board lock and panel stops for secure mounting. The contacts are made of phosphor bronze with a gold finish, ensuring reliable conductivity and corrosion resistance.
This part is classified as Cat3, suitable for voice and low-speed data applications up to 16 MHz.
It is a modular connector jack (RJ45) with 8 positions (8P8C).
It is a through hole mount component with solder termination.
No, it is unshielded.
The connector is oriented vertically.
It is rated Cat3.
No, it does not contain an LED.
The contacts are made of phosphor bronze with a gold finish.
