| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,100 pcs
|
30100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Features | |
| Flammability Rating | |
| Housing Material | |
| Industrial Grade | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Overall Plating | |
| Packaging Method | |
| Ratings | |
| Shielding | |
| Solder Zone Plating | |
| Standard Package Quantity | |
| Tab Direction | |
| Termination | |
| Termination Style |

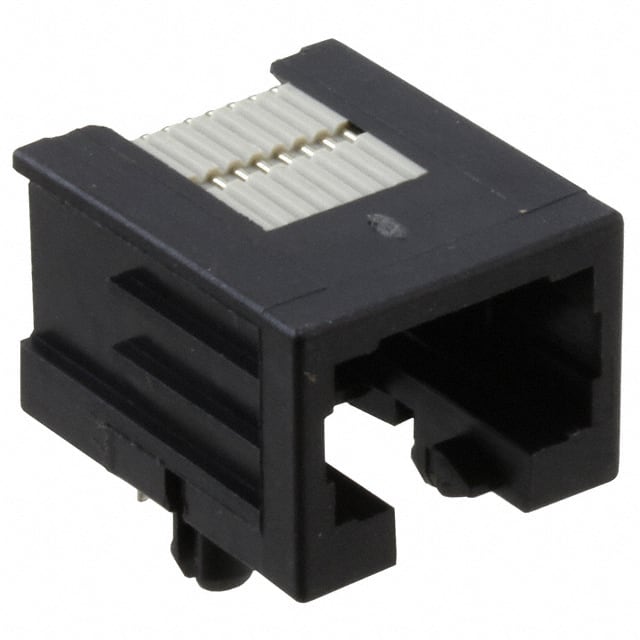

The TE Connectivity 215877-1 is a single-port modular jack designed for 8P8C (RJ45, Ethernet) connectors. It features a right angle (90°) orientation for through hole mounting with solder termination, making it suitable for PCB applications where space is constrained.
This jack is unshielded and rated Cat3, supporting applications up to 16 MHz. The housing is made of black PBT with UL94 V-0 flammability rating, and the contacts are phosphor bronze with gold over nickel plating in the mating zone and tin over nickel in the solder zone. A board lock feature secures the connector to the PCB.
The part is available in tape and reel packaging with 700 pieces per reel, as well as bulk and tray options. It does not contain an LED indicator.
This is a jack connector with 8 positions and 8 contacts (8P8C), commonly used for RJ45 Ethernet.
It is a through hole mount with a 90° right angle orientation.
No, it is unshielded.
The contacts are made of phosphor bronze with a gold finish over nickel plating in the mating zone.
The housing is made of black PBT with a UL94 V-0 flammability rating.
No, it does not contain an LED.
It is available in tape and reel (700 pcs/reel), bulk, and tray packaging.
