| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Board Side Pitch | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Tape & Reel | |
| Wire Gauge |

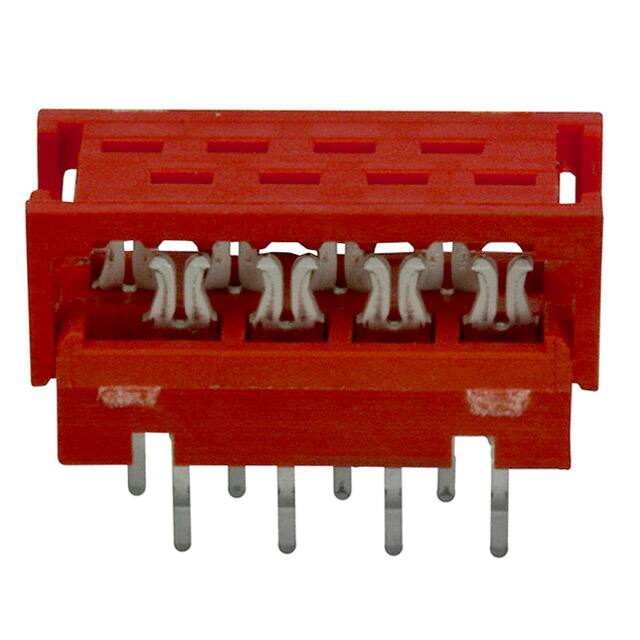

The TE Connectivity 215570-8 is an 8-position DIP header IDC connector designed for direct wire-to-board connections. It accommodates 28 AWG stranded or solid wire and features an insulation displacement contact (IDC) termination for reliable, gas-tight connections without stripping.
The connector has a dual-row configuration with 2.54mm row spacing and a cable pitch of 1.27mm. Contacts are finished in tin. The housing is red and supports a feed-through design, allowing pass-through wiring. Mounting is via through hole press-fit, providing secure retention on the PCB.
This connector is suitable for applications requiring compact, reliable wire-to-board interconnects. Its IDC termination reduces assembly time and eliminates the need for crimp contacts.
The 215570-8 connector has 8 positions arranged in 2 rows.
It accepts 28 AWG stranded or solid wire.
Row spacing is 0.100" (2.54mm) and cable pitch is 0.050" (1.27mm).
It uses IDC (Insulation Displacement Connection) termination.
The contacts have a tin finish.
It mounts via through hole press-fit.
