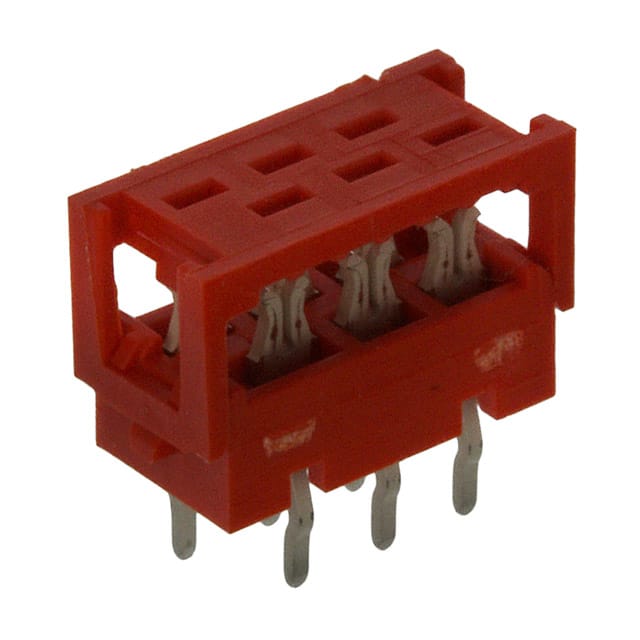

215570-6 TE Connectivity 215570-6 is a 6-position DIP header IDC connector with 2 rows, 2.54mm row spacing, and 1.27mm cable pitch. It features through hole press-fit mounting and tin contacts.
Mfr Part #:

215570-6

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 215570-6 is a 6-position DIP header IDC connector with 2 rows, 2.54mm row spacing, and 1.27mm cable pitch. It features through hole press-fit mounting and tin contacts.
✓ Total Stock: 7,500 pcs

215570-6 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request 1330 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

215570-6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Board
Cable Pitch
Cable Termination
Color
Connector Type
Contact Finish
Features
Mounting Type
Number of Positions
Number of Rows
Row Spacing
Tape & Reel
Termination Style
Wire Gauge
View Similar Products (0)

215570-6 Description

Short technical summary and product information.

The TE Connectivity 215570-6 is a 6-position DIP header IDC connector designed for board-in direct wire to board applications. It features 2 rows with a row spacing of 2.54mm (0.100") and a cable pitch of 1.27mm (0.050"), making it suitable for ribbon cable connections. The connector uses through hole press-fit mounting and IDC termination for 28 AWG stranded or solid wire. Contacts are finished with tin, and the housing is red. A feed through feature allows daisy chaining in multi-connector setups. This connector is part of TE Connectivity's rectangular connector family and is commonly used in internal wiring of electronic equipment where reliable, space-saving connections are required.

215570-6 Quick Information

Product Type: DIP Header IDC Connector
Series: 215570
Canonical Name: TE Connectivity 215570-6 6 Position DIP Header IDC Connector, Through Hole, Press-Fit
Subcategory: Board In, Direct Wire to Board

215570-6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

215570-6 Features

  • 6 position DIP header IDC connector.
  • 2 rows with 2.54mm row spacing.
  • 1.27mm cable pitch for ribbon cable.
  • Through hole press-fit mounting.
  • Tin contact finish for reliability.

215570-6 Applications

  • Used for board-in direct wire connections.
  • Ideal for ribbon cable to PCB interfaces.
  • Suitable for 28 AWG stranded or solid wire.
  • Feed through design for daisy chain applications.

215570-6 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 215570-6 have?

6 positions.

What is the row spacing?

2.54mm (0.100").

What is the cable pitch?

1.27mm (0.050").

What type of mounting does this connector use?

Through hole, press-fit.

What wire gauge is supported?

28 AWG stranded or solid.

What is the contact finish?

Tin.

Does it have a feed through feature?

Yes, feed through.
