| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,500 pcs
|
17500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

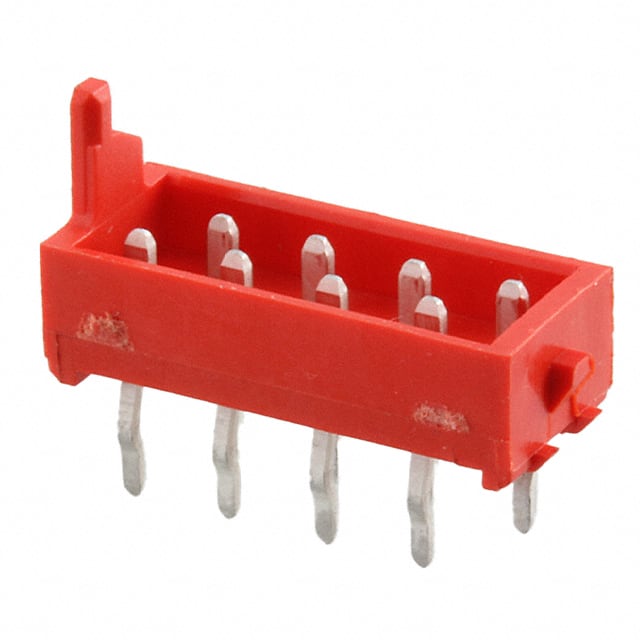

The TE Connectivity 215464-8 is a 8-position, 2-row header connector with a 2.54mm (0.100 inch) pitch. It features a through-hole mounting with a press-fit and solder termination. The contacts are male pins made of brass with a tin finish, offering good conductivity and corrosion resistance. The insulator is made of glass-filled polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, ensuring safety in various applications.
This connector is fully shrouded with four walls and includes a latch lock fastening mechanism for secure mating. It is suitable for board-to-board or cable connections. Electrical ratings include a current rating of 1.5A and a voltage rating of 230V. The operating temperature range is -40°C to 105°C, making it suitable for a wide range of environments.
The contact finish thickness is 3.00µm, and the contact length is 3.10mm. The insulation height is 3.60mm, and the color is red. This connector is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). It is also REACH unaffected. Overall, the 215464-8 is a reliable and versatile header connector for various electronic applications.
8 positions.
2.54mm.
1.5A.
230V.
Through hole.
Yes, it is shrouded with 4 walls.
Latch lock.
