| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

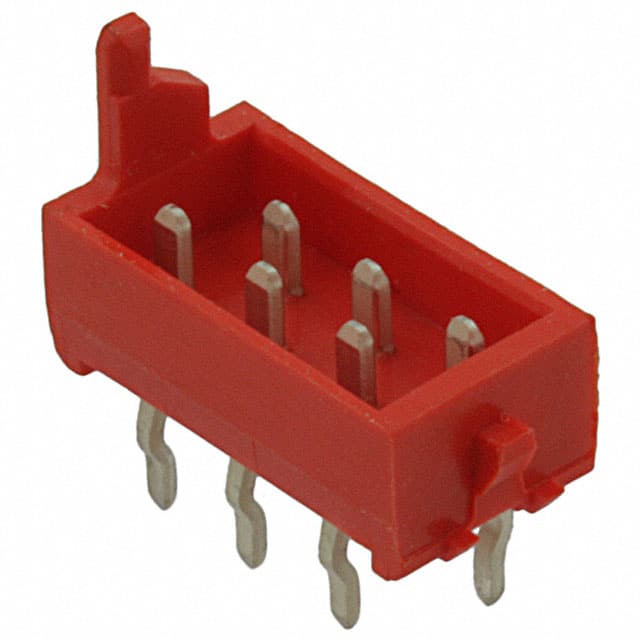

The TE Connectivity 215464-6 is a 6-position, 2-row shrouded header designed for board-to-board or cable applications. It features a 2.54mm pitch and row spacing, male pin contacts with tin finish, and a glass-filled PBT insulator in red. The connector offers a latch lock fastening system for secure mating and supports both press-fit and solder termination.
With a current rating of 1.5A and voltage rating of 230V, it is suitable for low-power signal and power interconnections. The operating temperature range of -40°C to 105°C allows use in a variety of environments. The insulator meets UL94 V-0 flammability rating.
The through-hole mounting style and shrouded 4-wall design provide robust mechanical retention and pin protection. It is RoHS3, REACH, and MSL 1 compliant (unverified). Ideal for use in industrial controls, test equipment, and consumer electronics requiring compact, reliable connectors.
The 215464-6 is a 6-position header with 2 rows, all positions loaded.
The pitch and row spacing are both 2.54mm (0.100").
It is rated at 1.5A and 230V.
It is a through-hole connector with press-fit or solder termination.
The operating temperature range is -40°C to 105°C.
It is listed as RoHS3 compliant (unverified).
The insulator is made of glass-filled Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating.
