| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,088 pcs
|
3088 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination |

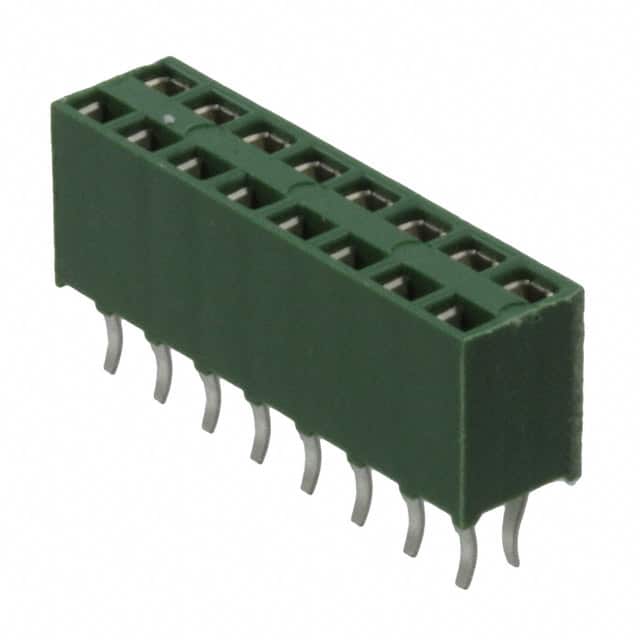

The TE Connectivity 215307-8 is a 16-position, 2-row rectangular receptacle designed for board-to-board interconnection. It features a 2.54mm (0.100") pitch and 2.54mm row spacing, with through-hole mounting and kinked pin solder termination. The female socket contacts have a Tin finish with 31.5µin (0.80µm) thickness. The insulator is available in black or green, with a height of 7.00mm (0.276"). A push-pull fastening mechanism secures the connection. The material is rated UL94 V-0 for flammability. This connector is suitable for use in a variety of electronic assemblies requiring reliable, low-profile board-to-board connections.
16 positions in 2 rows with all positions loaded.
2.54mm (0.100") pitch with 2.54mm (0.100") row spacing.
Through hole mounting with kinked pin solder termination.
Tin finish with 31.5µin (0.80µm) thickness.
Push-pull fastening mechanism.
Black or Green.
UL94 V-0.
