| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

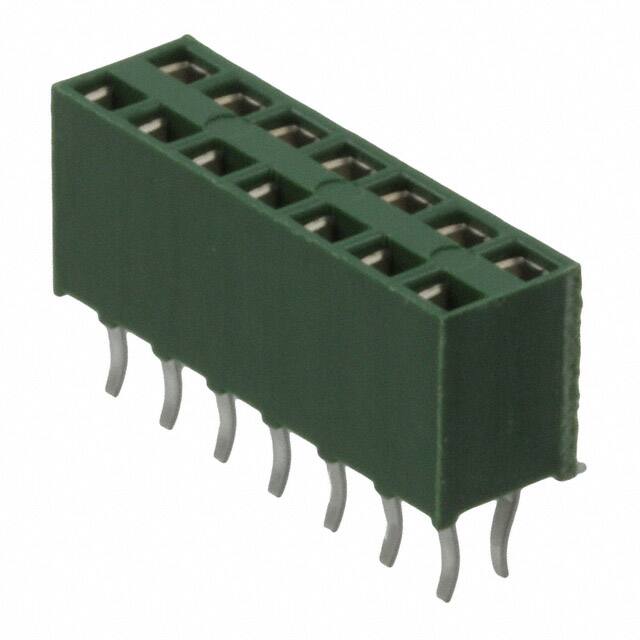

The TE Connectivity 215307-7 is a 14-position receptacle connector designed for board-to-board applications. It features a 2.54mm pitch and 2.54mm row spacing, with all positions loaded. The connector uses female socket contacts with a tin contact finish of 0.80µm thickness. The through-hole mounting type with kinked pin solder termination ensures secure attachment to PCBs. The green insulation has a height of 7.00mm and is rated UL94 V-0 for flammability. The push-pull fastening type allows easy mating and unmating. This connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for various electronic assemblies requiring reliable board-to-board interconnections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.41 | $1.41 |
| 10+ | $1.28 | $1.28 |
| 104+ | $0.93 | $0.93 |
| 5,096+ | $0.88 | $0.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
2.54mm (0.100").
Through Hole.
Tin with 0.80µm thickness.
2 rows.
Push-Pull.
Green.
