| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
208 pcs
|
208 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

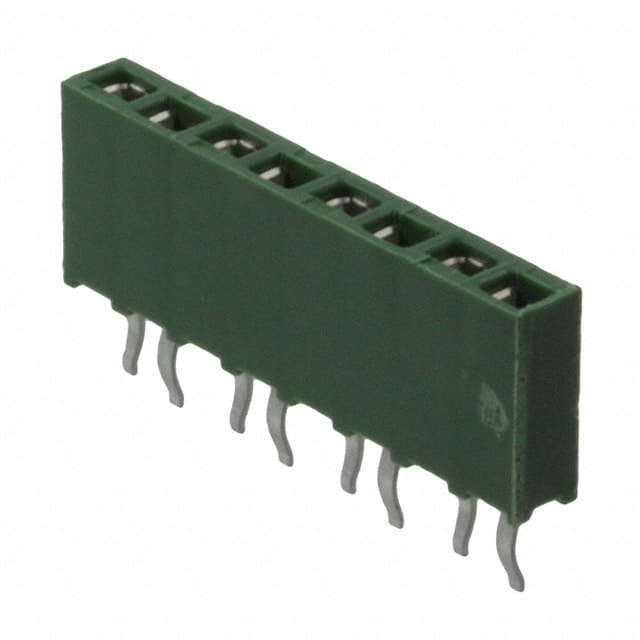

The TE Connectivity 215297-8 is an 8 position single row rectangular connector receptacle designed for board-to-board applications. It features a 2.54mm (0.100") pitch and uses female socket contacts with kinked pin, solder termination for reliable through hole mounting.
The receptacle has a push-pull fastening type and an insulation height of 7.00mm (0.276"). The contact length is 3.10mm (0.122") and the contact finish is tin with a thickness of 0.80µm (31.5µin). The insulator is available in black or green color and is rated UL94 V-0 for flammability.
All 8 positions are loaded, arranged in a single row. The design supports board-to-board connections in a variety of electronic assemblies requiring a compact and reliable interconnect solution.
The 215297-8 has 8 positions in a single row, all loaded.
The pitch is 2.54mm (0.100 inches).
The mounting type is through hole with kinked pin, solder termination.
