| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
278 pcs
|
278 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

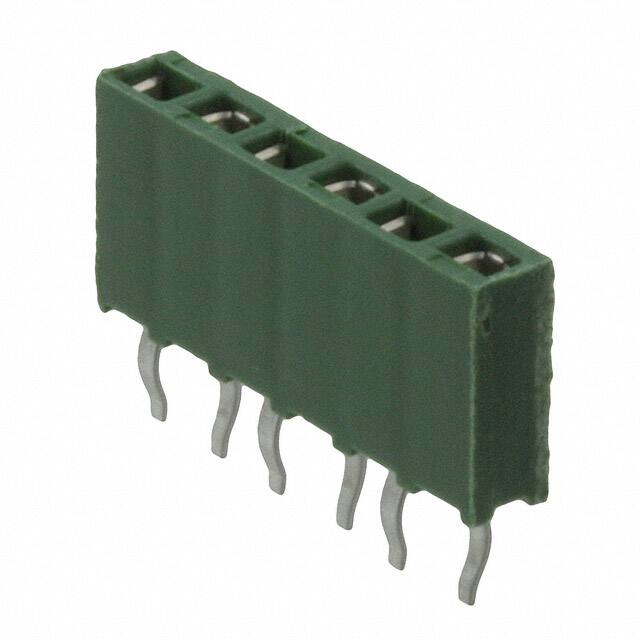

The TE Connectivity 215297-6 is a rectangular connector receptacle designed for board-to-board applications. It features 6 positions in a single row with a 2.54mm (0.100") pitch. The connector uses female socket contacts with a tin finish and a contact finish thickness of 31.5µin (0.80µm).
Mounting is through hole with kinked pin solder termination. The insulation body is available in black or green and has a height of 7.00mm. The contact length is 3.10mm. The housing material is rated UL94 V-0 for flammability.
The connector uses a push-pull fastening type and all 6 positions are loaded. It is RoHS3 compliant and has an MSL of 1 (unlimited).
The 215297-6 has 6 positions in a single row.
The pitch is 2.54mm (0.100").
Through hole mounting with kinked pin solder termination.
Tin with a thickness of 31.5µin (0.80µm).
UL94 V-0.
