215297-4 TE Connectivity 215297-4 is a 4 position receptacle connector with 0.100" (2.54mm) pitch, through hole mounting, and tin contact finish. It features a push-pull fastening type and UL94 V-0 flammability rating.
Mfr Part #:

215297-4

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 215297-4 is a 4 position receptacle connector with 0.100" (2.54mm) pitch, through hole mounting, and tin contact finish. It features a push-pull fastening type and UL94 V-0 flammability rating.
✓ Total Stock: 5,333 pcs

215297-4 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
5,152 pcs
On Request
5152 pcs On Request 1 On Request On Request On Request On Request On Request
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
181 pcs
On Request
181 pcs On Request 1 On Request On Request 1970-01-24 05:30:55 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

215297-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Type
Fastening Type
Insulation Color
Insulation Height
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

215297-4 Description

Short technical summary and product information.

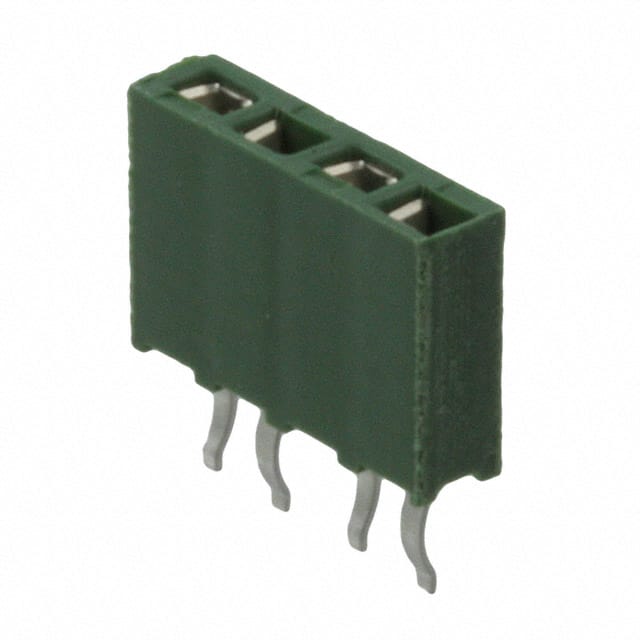

The TE Connectivity 215297-4 is a 4 position receptacle connector designed for board-to-board applications. It uses a single row of female socket contacts with a 0.100" (2.54mm) pitch, making it suitable for compact PCB layouts. The connector is through hole mounted with kinked pin solder termination, providing reliable mechanical retention. The contact finish is tin with a thickness of 0.80µm (31.5µin). The insulation is black or green and has a height of 7.00mm (0.276"). The connector uses a push-pull fastening mechanism and is rated UL94 V-0 for flammability. The contact length is 3.10mm (0.122"). All positions are loaded. This connector is intended for use in applications requiring reliable and compact board-to-board interconnections.

215297-4 Quick Information

Product Type: Receptacle Connector
Canonical Name: TE Connectivity 215297-4 - 4 Position Receptacle Connector, 0.100" (2.54mm) Pitch, Through Hole
Subcategory: Board to Board

215297-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

215297-4 Features

  • 4 position single row receptacle connector.
  • 0.100" (2.54mm) pitch for compact designs.
  • Through hole mount with kinked pin solder termination.
  • Tin contact finish with 0.80µm thickness.
  • UL94 V-0 flammability rated insulation.

215297-4 Applications

  • Board-to-board interconnection in electronic assemblies.
  • Ideal for low-profile PCB stacking applications.
  • Used in consumer and industrial electronics.
  • Suitable for signal and power connections.

215297-4 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 215297-4 have?

The connector has 4 positions.

What is the pitch of the 215297-4 connector?

The pitch is 2.54mm (0.100").

What is the mounting type for this connector?

Through hole mounting with kinked pin solder termination.

What is the contact finish on the 215297-4?

Tin contact finish with a thickness of 0.80µm (31.5µin).

What is the flammability rating of the insulation?

The insulation is rated UL94 V-0.

What is the insulation height of the 215297-4?

The insulation height is 7.00mm (0.276").

What is the style of this connector?

Board to board style with push-pull fastening.
