| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,888 pcs
|
4888 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
369 pcs
|
369 pcs | On Request | 1 | On Request | On Request | 1127 + | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination |

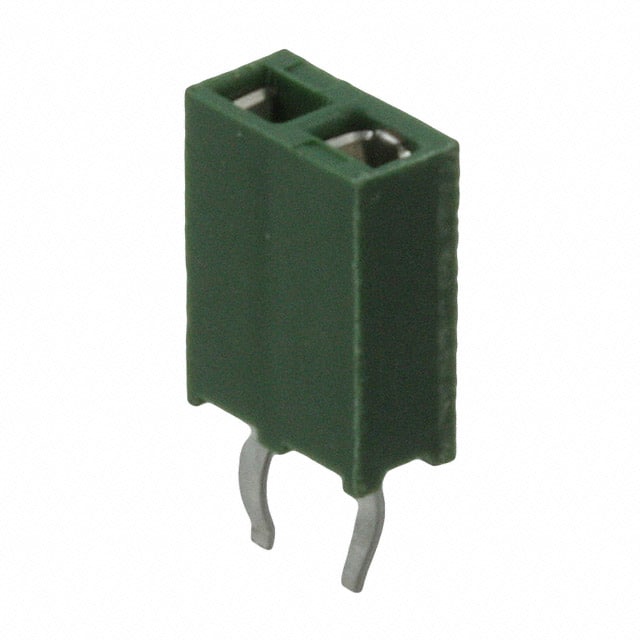

The TE Connectivity 215297-2 is a 2-position rectangular connector receptacle designed for board-to-board applications. It features female socket contacts in a single row with a 2.54mm pitch. The connector uses through hole mounting with kinked pin solder termination for secure mechanical attachment.
Mechanical specifications include a push-pull fastening type, black or green insulation, and an insulation height of 7.00mm. The contact finish is tin with a thickness of 0.80µm, and the contact length is 3.10mm. The housing material is rated UL94 V-0 for flammability.
This connector is suitable for general purpose board interconnect applications requiring a low-profile, reliable connection.
The 215297-2 is a 2-position connector.
The pitch is 2.54mm (0.100 inches).
It uses through hole mounting with kinked pin solder termination.
