Mfr Part #:

215-711

Wago 215-711 is a blue male banana plug with standard banana type, rated for 20A and 42V, featuring CAGE CLAMP connection technology for 14-28 AWG wires.

✓ Total Stock: 4 pcs

215-711 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	4 pcs On Request	4 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

215-711 Description

Short technical summary and product information.

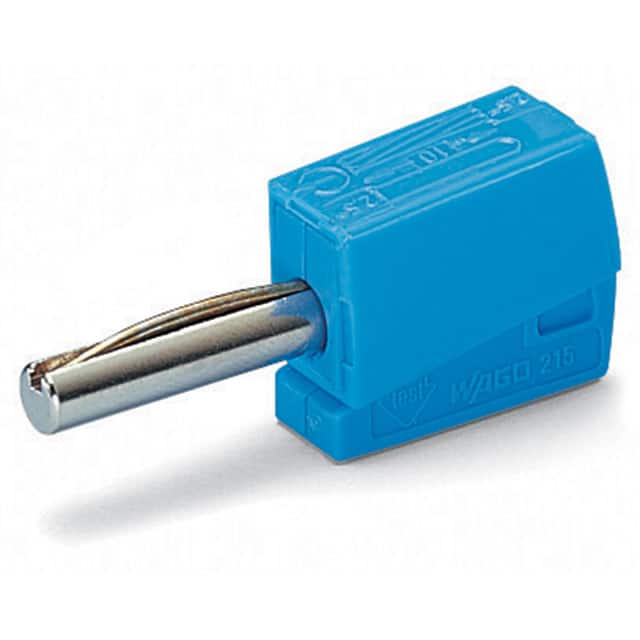

The Wago 215-711 is a blue male banana plug designed for use with 4 mm diameter sockets. It features a standard banana plug type and is insulated on the non-mating end. The plug utilizes Wago's CAGE CLAMP connection technology, providing a reliable and maintenance-free wire connection.

Electrical specifications include a rated current of 20 A and a test voltage of 42 V. It accepts solid and fine-stranded conductors from 0.08 to 2.5 mm² (28 to 14 AWG) with a strip length of 9 to 11 mm. The plug is free hanging (in-line) and measures 8 mm wide, 15 mm high, and 40 mm deep, weighing 3.9 g.

This banana plug is suitable for test and measurement applications, panel wiring, and educational labs where secure and quick connections are needed. It is packaged in a box of 50 pieces.

215-711 Quick Information

Product Type: Banana Plug

Canonical Name: Wago 215-711 Banana Plug, Male, Standard Banana, Blue, Non-Mating End Insulated, Free Hanging, CAGE CLAMP, 20A, 42V, 14-28 AWG

Subcategory: Jacks, Plugs

215-711 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Non-Compliant

215-711 Features

Male banana plug for 4 mm sockets.
Rated for 20 A continuous current.
CAGE CLAMP spring connection technology.
Accepts 14-28 AWG solid and stranded wire.
Blue color with non-mating end insulation.

215-711 Applications

Test and measurement equipment connections.
Educational and laboratory breadboarding.
Panel wiring and patch panel applications.
Low-voltage power distribution systems.

215-711 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the rated current of the Wago 215-711 banana plug?

The rated current is 20 A.

What wire gauge does the Wago 215-711 accept?

It accepts 14-28 AWG solid and fine-stranded conductors.

What connection technology does the Wago 215-711 use?

It uses CAGE CLAMP spring pressure connection technology.

What is the mounting type of the Wago 215-711?

It is free hanging (in-line) mounting.

What is the color of the Wago 215-711 banana plug?

The color is blue.

What is the test voltage rating of the Wago 215-711?

The test voltage is 42 V.
