| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Country of Origin | |
| Depth | |
| Gender | |
| Height | |
| Insulation | |
| Mounting Type | |
| Plug | |
| Rated Current | |
| Type | |
| Weight | |
| Width | |
| Wire Gauge |

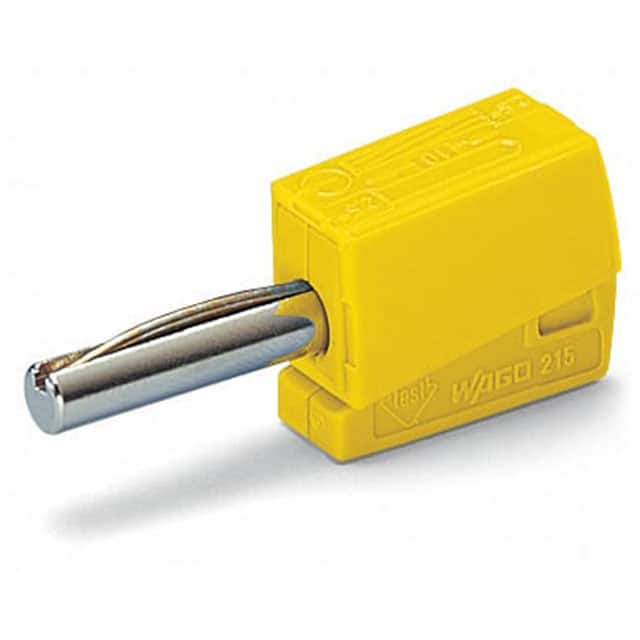

The Wago 215-511 is a standard banana plug designed for use with 4 mm diameter sockets. It is a male plug with non-mating end insulation, free hanging (in-line) mounting, and yellow color. The plug is rated for a continuous current of 20 A and a test voltage of 42 V. It utilizes CAGE CLAMP connection technology for reliable wire termination. The wire gauge range is 14 AWG to 28 AWG (solid or fine-stranded conductor cross-section 0.08 mm² to 2.5 mm²). The strip length is 9 mm to 11 mm. The plug has a single clamping unit and total of one potential. Dimensions are 8 mm width, 15 mm height, and 40 mm depth. Weight is 3.8 g. The product is packaged in a box of 50 pieces. It is RoHS compliant with no exemption. The country of origin is Germany. The datasheet confirms compliance with RoHS and provides environmental product compliance documentation.
20 A.
42 V (test voltage).
Free hanging (in-line).
14 AWG to 28 AWG.
Yellow.
CAGE CLAMP.
Box packaging with 50 pieces per standard package.
